VSH Super straight coupling with air vent (2 x compression)

VSH Super straight coupling with air vent (2 x compression)

S1250

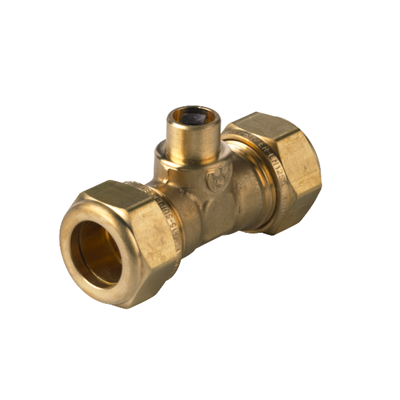

The VSH Super S1250 is a straight coupling with 2 compression ends and provided with an air vent. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • multiple tube types on one fitting (Copper, Stainless & Carbon tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

potable water heating

solutions

building installations industry
item number size weight dimensions packaging gtin
0860112 15 0.11 kg 62x28x37 mm bag (25 pce) 08711985019759
0860123 22 0.16 kg 64x37x41 mm bag (10 pce) 08711985019773
item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2 slw0
0860112 15 15.0 DN12 31 9 24 15.0 DN12 31 9 24 17
0860123 22 22.0 DN20 32 8 32 22.0 DN20 32 8 32 24
see above for the diagram related to these dimensions
color brass
materials brass (CW617N)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type compression
sealing Brass
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
brand VSH
series Super
type S1250
SCIP 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Material quality connection 1 CuZn40Pb2 (CW617N)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Material quality connection 2 CuZn40Pb2 (CW617N)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing No
Eccentric No
System specific Yes
Connection 1 Compression ring
Connection 2 Compression ring
Main colour fitting Brass
Flange compression class PN 10
Material sealing Brass
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -35°C - 200°C
Medium temperature (continuous) (imperial) -31°F - 392°F
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator Yes
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
