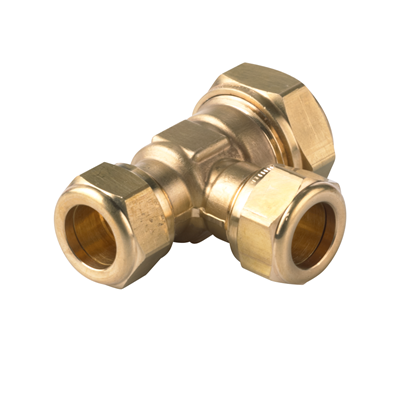

VSH Super reduced T-piece (3 x compression)

group: S1248

The VSH Super S1248 is a reduced T-piece with 3 compression ends. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • multiple tube types on one fitting (Copper, Stainless & Carbon tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

compressed air

compressed air

solar energy

solar energy

hydrogen (H2)

hydrogen (H2)

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

DVGW Gas

DVGW Gas

DVGW Wasser

DVGW Wasser

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

KIWA

KIWA

RISE

RISE

SINTEF

SINTEF

VA (ETA)

VA (ETA)

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

d3

DN3

l3

z3

slw0

item number

0867020

size

15x12x12

d1

15.0

DN1

DN12

l1

32

z1

9

slw1

24

d2

12.0

DN2

DN10

l2

35

z2

11

slw2

19

d3

12.0

DN3

DN10

l3

31

z3

9

slw0

17

item number

0881595

size

15x12x12 DZR

d1

15.0

DN1

DN12

l1

32

z1

9

slw1

24

d2

12.0

DN2

DN10

l2

35

z2

11

slw2

19

d3

12.0

DN3

DN10

l3

31

z3

9

slw0

17

item number

0896940

size

15x12x12 DZR Cr

d1

15.0

DN1

DN12

l1

32

z1

9

slw1

24

d2

12.0

DN2

DN10

l2

35

z2

11

slw2

19

d3

12.0

DN3

DN10

l3

31

z3

9

slw0

17

item number

0867361

size

18x15x15

d1

18.0

DN1

DN15

l1

35

z1

11

slw1

27

d2

15.0

DN2

DN12

l2

35

z2

12

slw2

24

d3

15.0

DN3

DN12

l3

33

z3

10

slw0

22

item number

0881641

size

18x15x15 DZR

d1

18.0

DN1

DN15

l1

35

z1

11

slw1

27

d2

15.0

DN2

DN12

l2

35

z2

12

slw2

24

d3

15.0

DN3

DN12

l3

33

z3

10

slw0

22

item number

0867119

size

22x12x15

d1

22.0

DN1

DN20

l1

34

z1

10

slw1

32

d2

15.0

DN2

DN12

l2

38

z2

14

slw2

24

d3

12.0

DN3

DN10

l3

30

z3

13

slw0

24

item number

0867121

size

22x15x15

d1

22.0

DN1

DN20

l1

34

z1

10

slw1

32

d2

15.0

DN2

DN12

l2

38

z2

14

slw2

24

d3

15.0

DN3

DN12

l3

34

z3

11

slw0

24

item number

0886292

size

22x15x15 DZR

d1

22.0

DN1

DN20

l1

34

z1

10

slw1

32

d2

15.0

DN2

DN12

l2

38

z2

14

slw2

24

d3

15.0

DN3

DN12

l3

34

z3

11

slw0

24

item number

0886688

size

22x15x15 DZR Cr

d1

22.0

DN1

DN20

l1

34

z1

10

slw1

32

d2

15.0

DN2

DN12

l2

38

z2

14

slw2

24

d3

15.0

DN3

DN12

l3

34

z3

11

slw0

24

item number

0875655

size

22x15x15 DZR Ni

d1

22.0

DN1

DN20

l1

34

z1

10

slw1

32

d2

15.0

DN2

DN12

l2

38

z2

14

slw2

24

d3

15.0

DN3

DN12

l3

34

z3

11

slw0

24

item number

0867218

size

28x22x15

d1

28.0

DN1

DN25

l1

35

z1

10

slw1

39

d2

15.0

DN2

DN12

l2

42

z2

20

slw2

24

d3

22.0

DN3

DN20

l3

33

z3

9

slw0

30

item number

0867231

size

28x15x22

d1

28.0

DN1

DN25

l1

38

z1

14

slw1

39

d2

22.0

DN2

DN20

l2

43

z2

19

slw2

32

d3

15.0

DN3

DN12

l3

36

z3

14

slw0

30

item number

0867240

size

28x22x22

d1

28.0

DN1

DN25

l1

38

z1

14

slw1

39

d2

22.0

DN2

DN20

l2

43

z2

17

slw2

32

d3

22.0

DN3

DN20

l3

39

z3

14

slw0

30

item number

size

l3

z3

slw0

15x12x12

31

9

17

15x12x12 DZR

31

9

17

15x12x12 DZR Cr

31

9

17

18x15x15

33

10

22

18x15x15 DZR

33

10

22

22x12x15

30

13

24

22x15x15

34

11

24

22x15x15 DZR

34

11

24

22x15x15 DZR Cr

34

11

24

22x15x15 DZR Ni

34

11

24

28x22x15

33

9

30

28x15x22

36

14

30

28x22x22

39

14

30

technical drawing for product

characteristics

color

brass, silver, chrome

materials

brass (CW602N (DZR), CW617N)

finishing

chromed, nickel-plated, none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

T-piece, reducer (90º)

connection type

compression, Compression

sealing

Brass

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Super

type

S1248

SCIP

1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d

label

value

label

Material connection 1

value

Brass

label

Material connection 2

value

Brass

label

Material connection 3

value

Brass

label

Model

value

T-piece

label

Angle

value

90°

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Compression ring

label

Connection 2

value

Compression ring

label

Connection 3

value

Compression ring

label

Flange compression class

value

PN 10

label

Material sealing

value

Brass

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Medium temperature (continuous)

value

-35°C - 200°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 392°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

KOMO certified

value

No
