VSH Super tank connector with union (compression x counter nut)

group: S1245

The VSH Super S1245 is a union tank connector with a compression and counter nut end. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • multiple tube types on one fitting (Copper, Stainless & Carbon tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

VA (ETA)

VA (ETA)

item number

size

d1

DN1

l1

z1

slw1

DN2

l2

slw2

item number

0874566

size

15

d1

15.0

DN1

DN12

l1

37

z1

15

slw1

24

DN2

DN12

l2

10

slw2

30

item number

0874577

size

22

d1

22.0

DN1

DN20

l1

38

z1

15

slw1

32

DN2

DN20

l2

10

slw2

30

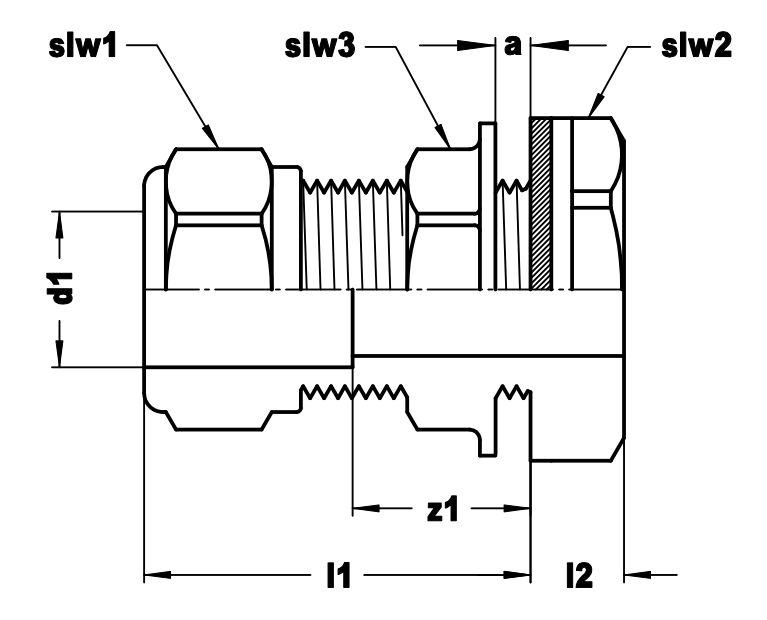

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

compression, coupling nut

sealing

Brass

general

product group

fittings (unions)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Super

type

S1245

SCIP

1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

2-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Compression ring

label

Connection 2

value

Union nut

label

Main colour fitting

value

Brass

label

Flange compression class (PN)

value

PN 10

label

Material sealing

value

Brass

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Working length connection 1

value

15mm

label

Working length connection 1 (imperial)

value

0.59"

label

Medium temperature (continuous)

value

-35°C - 200°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 392°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With sealing rings/gaskets

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
