VSH Super corner T-piece (3 x compression)

VSH Super corner T-piece (3 x compression)

S1235

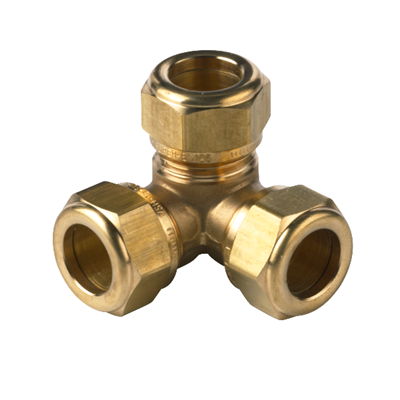

The VSH Super S1235 is a corner T-piece with 3 compression ends. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • multiple tube types on one fitting (Copper, Stainless & Carbon tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

potable water natural gas heating compressed air solar energy

solutions

building installations industry

approvals

DVGW Gas DVGW Wasser KIWA VA (ETA)
item number size weight dimensions packaging gtin
0871332 15 0.15 kg 47x47x47 mm bag (25 pce) 08711985019391
0875831 15 Ni 0.14 kg 47x47x47 mm bag (25 pce) 08711985023282
0871354 22 0.25 kg 56x56x56 mm bag (10 pce) 08711985019414
0875853 22 Ni 0.24 kg 56x56x56 mm bag (10 pce) 08711985023305
item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2 d3 DN3 l3 z3
0871332 15 15.0 DN12 33 11 24 15.0 DN12 33 10 24 15.0 DN12 33 11
0875831 15 Ni 15.0 DN12 33 11 24 15.0 DN12 33 10 24 15.0 DN12 33 11
0871354 22 22.0 DN20 37 14 32 22.0 DN20 37 14 32 22.0 DN20 37 14
0875853 22 Ni 22.0 DN20 37 14 32 22.0 DN20 37 14 32 22.0 DN20 37 14

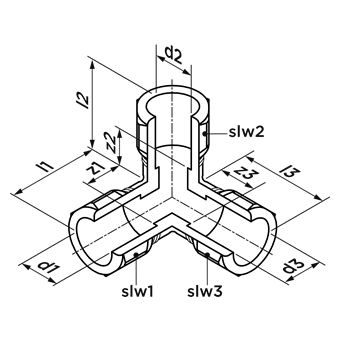

see above for the diagram related to these dimensions
color brass, silver
materials brass (CW617N)
finishing nickel-plated, none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape T-piece (90º)
connection type compression, Compression
sealing Brass
product group fittings
ETIM class EC003025 Fitting with 3 connections
HS code 74122000
brand VSH
series Super
type S1235
SCIP 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
