group: S1216
The VSH Super S1216 is a 90° elbow with 2 compression ends. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.
potable water
natural gas
heating
compressed air
solar energy
residential
commercial building
industry
DVGW Gas
DVGW Wasser
VA (ETA)
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
56x28x56 mm
weight
0.1 kg
packaging
bag (25 pce)
gtin
08711985017854
item number
size
22
dimensions
70x37x70 mm
weight
0.17 kg
packaging
bag (10 pce)
gtin
08711985017878
item number
size
28
dimensions
75x45x75 mm
weight
0.28 kg
packaging
bag (5 pce)
gtin
08711985017892
item number
size
35
dimensions
91x53x91 mm
weight
0.42 kg
packaging
bag (5 pce)
gtin
08711985017915
item number
size

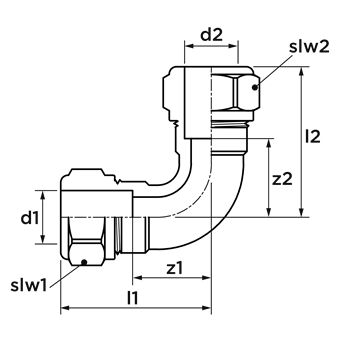

d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
slw2
angle
item number
0863016size
15
d1
15.0
DN1
DN12
l1
42
z1
18
slw1
24
d2
15.0
DN2
DN12
l2
42
z2
18
slw2
24
angle
90
item number
0863027size
22
d1
22.0
DN1
DN20
l1
51
z1
23
slw1
32
d2
22.0
DN2
DN20
l2
51
z2
23
slw2
32
angle
90
item number
0863038size
28
d1
28.0
DN1
DN25
l1
52
z1
28
slw1
39
d2
28.0
DN2
DN25
l2
52
z2
28
slw2
39
angle
90
item number
0863049size
35
d1
35.0
DN1
DN32
l1
64
z1
33
slw1
46
d2
35.0
DN2
DN32
l2
64
z2
33
slw2
46
angle
90
color
brass
materials
brass (CW617N)
finishing
none
shape
Bend (90º)
connection type
compression
sealing
Brass
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Super
type
S1216
SCIP
1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
max operating pressure liquid
10 bar
min. medium temperature
-35 °C
max medium temperature
200 °C
peak medium temperature
250 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Compression ring
label
Connection 2
value
Compression ring
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 10
label
Material sealing
value
Brass
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-35°C - 200°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 392°F
label
Max. operating pressure at 20 °C
value
10bar
label
Max. operating pressure at 20 °C (imperial)
value
145.04psi
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for water
value
Yes
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
0863016carbon footprint (A1-A3) cradle-to-gate
0.63kgCO2e
carbon footprint (A-C) embodied carbon
0.47kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.42kgCO2e
data source
EPD
item number
0863027carbon footprint (A1-A3) cradle-to-gate
1.09kgCO2e
carbon footprint (A-C) embodied carbon
0.81kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.73kgCO2e
data source
EPD
item number
0863038carbon footprint (A1-A3) cradle-to-gate
1.78kgCO2e
carbon footprint (A-C) embodied carbon
1.32kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.2kgCO2e
data source
EPD
item number
0863049carbon footprint (A1-A3) cradle-to-gate
2.65kgCO2e
carbon footprint (A-C) embodied carbon
1.96kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.79kgCO2e
data source
EPD
