group: R2426

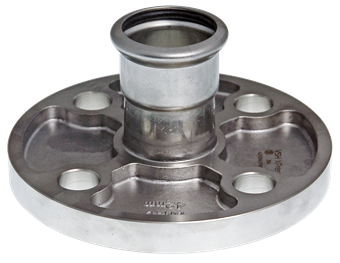

The VSH XPress Stainless 304 R2426 is a Stainless steel PN16 flange adapter with a press end and a DIN flange connection. By using VSH XPress Stainless 304 in your piping installation you can install in a quick, easy and clean way. VSH XPress Stainless 304 provides a stainless steel piping system suitable for heating and cooling.
heating
cooling
compressed air
solar energy
industry
commercial building
QB (CSTBat)
code
size
dimensions
weight
packaging
gtin
code
size
35xDN32 PN16
dimensions
69x140x140 mm
weight
1.32 kg
packaging
bag (1 pce)
gtin
08711985539288
code
size
42xDN40 PN16
dimensions
77x150x150 mm
weight
1.59 kg
packaging
bag (1 pce)
gtin
08711985539295
code
size
54xDN50 PN16
dimensions
87x165x165 mm
weight
1.82 kg
packaging
bag (1 pce)
gtin
08711985539301
code
size
76.1xDN65 PN16
dimensions
126x185x185 mm
weight
3.57 kg
packaging
bag (1 pce)
gtin
08711985539318
code
size
88.9xDN80 PN16
dimensions
147x200x200 mm
weight
4.37 kg
packaging
bag (1 pce)
gtin
08711985539325
code
size
108xDN100 PN16
dimensions
167x220x220 mm
weight
5.28 kg
packaging
bag (1 pce)
gtin
08711985539332
code
size
d1
DN1
l1
z1
DN2
l2
n2
k2
d2-2
D2
code
size
35xDN32 PN16
d1
35.0
DN1
DN32
l1
51
z1
26
DN2
DN32
l2
17
n2
4
k2
100
d2-2
18
D2
140
code
size
42xDN40 PN16
d1
42.0
DN1
DN40
l1
59
z1
29
DN2
DN40
l2
18
n2
4
k2
110
d2-2
18
D2
150
code
size
54xDN50 PN16
d1
54.0
DN1
DN50
l1
69
z1
34
DN2
DN50
l2
18
n2
4
k2
125
d2-2
18
D2
165
code
size
76.1xDN65 PN16
d1
76.1
DN1
DN65
l1
108
z1
53
DN2
DN65
l2
18
n2
4
k2
145
d2-2
18
D2
185
code
size
88.9xDN80 PN16
d1
88.9
DN1
DN80
l1
127
z1
64
DN2
DN80
l2
20
n2
8
k2
160
d2-2
18
D2
200
code
size
108xDN100 PN16
d1
108.0
DN1
DN100
l1
147
z1
70
DN2
DN100
l2
20
n2
8
k2
180
d2-2
18
D2
220
item
VSH XPress Stainless 304 flange adapter PN16 (press x flange)
item number with gtin
R2426
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
5.28 kg
dimensions
167x220x220 mm
color
silver
materials
stainless steel (Stainless steel 304 L (1.4307))
finishing
none
shape
straight
connection type
press (M), flange
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
135 °C
peak medium temperature
150 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
73072980
brand
VSH
series
XPress Stainless 304
type
R2426
label
value
label
etim-class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 304 L (1.4307)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 304 L (1.4307)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Flange
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
code
carbon footprint (A1-A3) cradle-to-gate
5.87kgCO2e
carbon footprint (A-C) embodied carbon
6.12kgCO2e
carbon footprint (A-D) cradle-to-cradle
4.75kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
7.04kgCO2e
carbon footprint (A-C) embodied carbon
7.34kgCO2e
carbon footprint (A-D) cradle-to-cradle
5.7kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
8.08kgCO2e
carbon footprint (A-C) embodied carbon
8.43kgCO2e
carbon footprint (A-D) cradle-to-cradle
6.55kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
15.86kgCO2e
carbon footprint (A-C) embodied carbon
16.54kgCO2e
carbon footprint (A-D) cradle-to-cradle
12.85kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
19.41kgCO2e
carbon footprint (A-C) embodied carbon
20.23kgCO2e
carbon footprint (A-D) cradle-to-cradle
15.72kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
23.44kgCO2e
carbon footprint (A-C) embodied carbon
24.44kgCO2e
carbon footprint (A-D) cradle-to-cradle
18.98kgCO2e
data source
EPD
