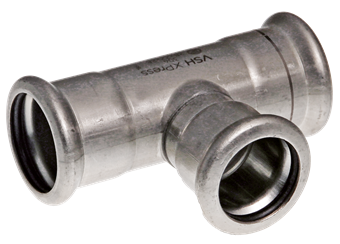

VSH XPress Stainless 304 T-piece (3 x press)

group: R2414

The VSH XPress Stainless 304 R2414 is a Stainless steel T-piece with 3 press ends. By using VSH XPress Stainless 304 in your piping installation you can install in a quick, easy and clean way. VSH XPress Stainless 304 provides a stainless steel piping system suitable for heating and cooling.

  • insert stop: stop edge for pipe end
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

123460555

size

15

d1

15.0

DN1

DN12

l1

35

z1

15

d2

15.0

DN2

DN12

l2

39

z2

19

d3

15.0

DN3

DN12

l3

35

z3

15

item number

123460556

size

18

d1

18.0

DN1

DN15

l1

37

z1

17

d2

18.0

DN2

DN15

l2

41

z2

21

d3

18.0

DN3

DN15

l3

37

z3

17

item number

123460557

size

22

d1

22.0

DN1

DN20

l1

40

z1

19

d2

22.0

DN2

DN20

l2

44

z2

23

d3

22.0

DN3

DN20

l3

40

z3

19

item number

123460558

size

28

d1

28.0

DN1

DN25

l1

45

z1

22

d2

28.0

DN2

DN25

l2

49

z2

26

d3

28.0

DN3

DN25

l3

45

z3

22

item number

123460559

size

35

d1

35.0

DN1

DN32

l1

51

z1

25

d2

35.0

DN2

DN32

l2

55

z2

29

d3

35.0

DN3

DN32

l3

51

z3

25

item number

123460560

size

42

d1

42.0

DN1

DN40

l1

60

z1

30

d2

42.0

DN2

DN40

l2

62

z2

32

d3

42.0

DN3

DN40

l3

60

z3

30

item number

123460561

size

54

d1

54.0

DN1

DN50

l1

71

z1

36

d2

54.0

DN2

DN50

l2

72

z2

37

d3

54.0

DN3

DN50

l3

71

z3

36

item number

123460647

size

76.1

d1

76.1

DN1

DN65

l1

116

z1

61

d2

76.1

DN2

DN65

l2

115

z2

60

d3

76.1

DN3

DN65

l3

116

z3

61

item number

123460562

size

88.9

d1

88.9

DN1

DN80

l1

131

z1

68

d2

88.9

DN2

DN80

l2

127

z2

64

d3

88.9

DN3

DN80

l3

131

z3

68

item number

123460563

size

108

d1

108.0

DN1

DN100

l1

156

z1

79

d2

108.0

DN2

DN100

l2

155

z2

78

d3

108.0

DN3

DN100

l3

156

z3

79

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 304 (1.4301))

finishing

none

shape

T-piece (90º)

connection type

press (M), Press (M)

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

73072980

brand

VSH

series

XPress Stainless 304

type

R2414

UNSPS

40174607

label

value

label

Material connection 1

value

Stainless steel

label

Material quality connection 1

value

Stainless steel 304 (1.4301)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Material quality connection 2

value

Stainless steel 304 (1.4301)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Stainless steel

label

Material quality connection 3

value

Stainless steel 304 (1.4301)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Connection 3

value

Press sleeve

label

Contour code connection 3

value

M

label

Flange compression class

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Grey

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-35°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 275°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
