group: R2409

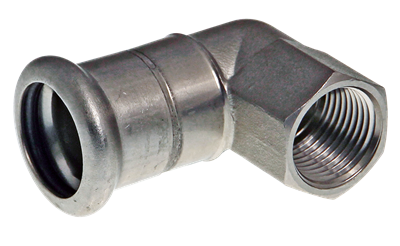

The VSH XPress Stainless 304 R2409 is a Stainless steel 90° angle adapter with a press and female thread end. By using VSH XPress Stainless 304 in your piping installation you can install in a quick, easy and clean way. VSH XPress Stainless 304 provides a stainless steel piping system suitable for heating and cooling.
heating
cooling
compressed air
solar energy
industry
commercial building
QB (CSTBat)
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
40x28x56 mm
weight
0.08 kg
packaging
bag (10 pce)
gtin
08711985538359
code
size
22xRp3/4"
dimensions
49x35x64 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08711985538366
code
size
28xRp1"
dimensions
56x44x74 mm
weight
0.26 kg
packaging
bag (10 pce)
gtin
08711985538373
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
code
size
15xRp1/2"
d1
15.0
DN1
DN12
l1
44
z1
24
d2
21.3
DN2
1/2" (DN15)
l2
28
z2
13
slw2
24
code
size
22xRp3/4"
d1
22.0
DN1
DN20
l1
49
z1
28
d2
26.9
DN2
3/4" (DN20)
l2
33
z2
17
slw2
30
item
VSH XPress Stainless 304 angle adapter 90° (press x female thread)
item number with gtin
R2409
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.26 kg
dimensions
56x44x74 mm
color
silver
materials
stainless steel (Stainless steel 304 L (1.4307))
finishing
none
shape
Elbow, 90º
connection type
press (M), Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
135 °C
peak medium temperature
150 °C
product group
fittingen
ETIM class
EC003024 Fitting with 2 connectionsHS code
73072980
brand
VSH
series
XPress Stainless 304
type
R2409
UNSPS
40172807
label
value
label
etim-class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 304 L (1.4307)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 304 L (1.4307)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Wall thickness, connection 1
value
1.5mm
label
Wall thickness, connection 1 (imperial)
value
0.06"
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
code
carbon footprint (A1-A3) cradle-to-gate
0.34kgCO2e
carbon footprint (A-C) embodied carbon
0.35kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.27kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
0.56kgCO2e
carbon footprint (A-C) embodied carbon
0.58kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.45kgCO2e
data source
EPD
code
carbon footprint (A1-A3) cradle-to-gate
1.16kgCO2e
carbon footprint (A-C) embodied carbon
1.2kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.94kgCO2e
data source
EPD
