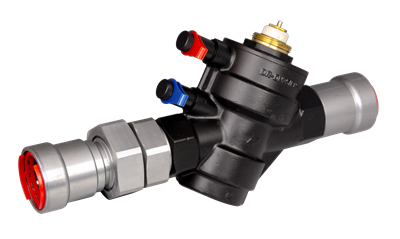

VSH PowerPress dynamic commissioning valve with union connection (2 x press)

group: PPSU902

The VSH PowerPress® dynamic balancing valve is a part of the VSH PowerPress® system. By using this system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • automatic balancing
  • direct flow measuring of actual flow
  • high flow accuracy
  • easy system flushing due to removable cartridge
  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function

Union couplings should be combined with male threaded counterparts with appropriate support for the seal.
  1. check the quality and integrity of theflat sealing. Sealing and support flats must be clean and free of indentations
  2. mount the union on the male thread until hand tight
  3. apply 1/8 to 1/4 turn, using a matching spanner. Over-turning might cause damage to the sealing ring
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

H

V

U

a

item number

PWR9440871

size

1/2 (DN15) SF

d1

21.3

DN1

DN15

l1

127

z1

99

d2

21.3

DN2

DN15

l2

87

z2

59

H

74

V

51

U

43

a

60

item number

PWR9440882

size

1/2 (DN15) HF

d1

21.3

DN1

DN15

l1

127

z1

99

d2

21.3

DN2

DN15

l2

87

z2

59

H

74

V

51

U

43

a

60

item number

PWR9440904

size

3/4 (DN20) HF

d1

26.9

DN1

DN20

l1

153

z1

122

d2

26.9

DN2

DN20

l2

96

z2

65

H

78

V

57

U

54

a

45

item number

PWR9440926

size

1 (DN25) HF

d1

33.7

DN1

DN25

l1

152

z1

116

d2

33.7

DN2

DN25

l2

110

z2

74

H

83

V

62

U

71

a

60

item number

PWR9440937

size

1 1/4 (DN32) HF

d1

42.4

DN1

DN32

l1

185

z1

137

d2

42.4

DN2

DN32

l2

138

z2

90

H

88

V

64

U

81

a

60

item number

PWR9440948

size

1 1/2 (DN40) SF

d1

48.3

DN1

DN40

l1

213

z1

164

d2

48.3

DN2

DN40

l2

158

z2

109

H

121

V

91

U

110

a

60

item number

PWR9440959

size

2 (DN50) HF

d1

60.3

DN1

DN50

l1

227

z1

174

d2

60.3

DN2

DN50

l2

165

z2

112

H

123

V

94

U

110

a

60

technical drawing for product

characteristics

color

black

materials

brass (CW602N (DZR))

finishing

zinc-nickel plated

shape

straight

connection type

press (DW)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (dynamic balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818081

brand

VSH

series

PowerPress

type

PPSU902

UNSPS

40141609

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn36Pb2As (CW602N)

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

No

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

Yes

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-20°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 248°F

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Dynamic

label

With drain valve

value

No

label

With thermometer

value

No

label

With insulation

value

No
