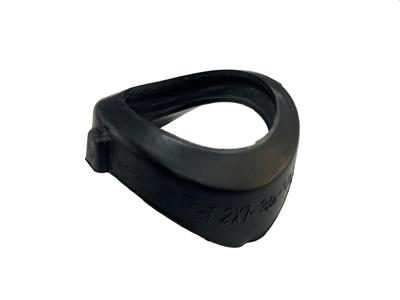

VSH Shurjoint NBR gasket for mechanical tee

VSH Shurjoint NBR gasket for mechanical tee

group: NBR-T-MT

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”

applications

heating

heating

cooling

cooling

compressed air

compressed air

show all
show less

solutions

building installations

building installations

industry

industry

show all
show less

approvals

no approvals available

item number size weight dimensions packaging gtin
SG21T2505 2 1/2x 1/2 ~ 1 NBR 0.01 kg 24x60x60 mm carton (200 pce) 04710574457471
SG21T2512 2 1/2x1 1/4 / 2 1/2x1 1/2 NBR 0.02 kg 37x63x63 mm carton (200 pce) 04710574461478
SG21T3005 3x 1/2 ~ 1 NBR 0.01 kg 20x60x60 mm carton (400 pce) 04710574457488
SG21T3012 3x1 1/4 / 3x1 1/2 NBR 0.02 kg 25x72x72 mm carton (250 pce) 04710574461485
SG21T3020 3x2 NBR 0.03 kg 44x87x87 mm carton (100 pce) 04710574457495
SG21T4505 4x 1/2 ~ 1 NBR 0.01 kg 18x60x60 mm carton (400 pce) 04710574457501
SG21T5520 5x2 / 6x2 NBR 0.02 kg 26x86x86 mm carton (150 pce) 04710574460365
SG21T5525 5x2 1/2 / 6x2 1/2 / 8x1 1/4 / 8x1 1/2 / 8x2 / 8x2 1/2 NBR 0.03 kg 26x86x86 mm carton (150 pce) 04710574461461
item number size DN1 DN2 a
SG21T2505 2 1/2x 1/2 ~ 1 NBR DN65
SG21T2512 2 1/2x1 1/4 / 2 1/2x1 1/2 NBR DN65
SG21T3005 3x 1/2 ~ 1 NBR DN80
SG21T3012 3x1 1/4 / 3x1 1/2 NBR DN80
SG21T3020 3x2 NBR DN80 DN50
SG21T4505 4x 1/2 ~ 1 NBR DN100 11
SG21T5520 5x2 / 6x2 NBR 14
SG21T5525 5x2 1/2 / 6x2 1/2 / 8x1 1/4 / 8x1 1/2 / 8x2 / 8x2 1/2 NBR

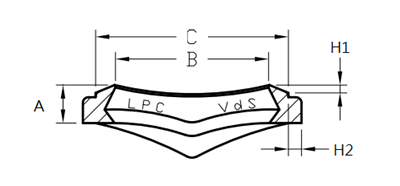

drawing for product
color black
materials rubber (NBR (Nitril))
finishing none
manufacturer Shurjoint
product group fittings (accessories (fittings))
ETIM class EC004602 Accessories/spare parts for broaching saddle
HS code 40169300
brand VSH
series Shurjoint
type NBR-T-MT
label value
ETIM class EC004602 Accessories/spare parts for broaching saddle
Type of accessory/spare part Gasket set
Accessory Yes
Spare part Yes
