VSH XPress Sprinkler ML reduced T-piece (3 x press)

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

sprinkler

sprinkler

segments

fire protection

fire protection

approvals

VdS

VdS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

6350399

size

40x32x40

d1

40.0

DN1

DN32

l1

72

z1

36

d2

32.0

DN2

DN25

l2

75

z2

39

d3

40.0

DN3

DN32

l3

72

z3

36

item number

6350401

size

50x32x50

d1

50.0

DN1

DN40

l1

83

z1

32

d2

32.0

DN2

DN25

l2

77

z2

41

d3

50.0

DN3

DN40

l3

83

z3

32

item number

6350410

size

50x40x50

d1

50.0

DN1

DN40

l1

92

z1

41

d2

40.0

DN2

DN32

l2

80

z2

44

d3

50.0

DN3

DN40

l3

92

z3

41

item number

6350421

size

63x32x63

d1

63.0

DN1

DN50

l1

97

z1

33

d2

32.0

DN2

DN25

l2

83

z2

47

d3

63.0

DN3

DN50

l3

97

z3

33

item number

6350432

size

63x40x63

d1

63.0

DN1

DN50

l1

106

z1

42

d2

40.0

DN2

DN32

l2

86

z2

50

d3

63.0

DN3

DN50

l3

106

z3

42

item number

6350443

size

63x50x63

d1

63.0

DN1

DN50

l1

110

z1

46

d2

50.0

DN2

DN40

l2

102

z2

51

d3

63.0

DN3

DN50

l3

110

z3

46

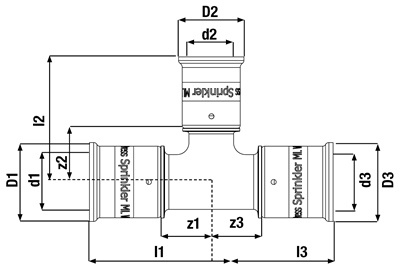

technical drawing for product

characteristics

color

black

materials

plastic (PVDF)

finishing

none

shape

T-piece, reducer (90º)

connection type

press (BE), Press (BE)

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

39174000

brand

VSH

series

XPress Sprinkler ML

type

ML7115

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

10 °C

max medium temperature

49 °C

peak medium temperature

95 °C

image for ML7115

image | jpg

ML7115

image for Diagram

diagram | png

Diagram

certifications | pdf

VdS

certifications | pdf

VdS

label

value

label

Material connection 1

value

Polyvinylidene fluoride (PVDF)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Polyvinylidene fluoride (PVDF)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Polyvinylidene fluoride (PVDF)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

Yes

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

BE

label

Wall thickness, connection 2

value

0.9mm

label

Wall thickness, connection 2 (imperial)

value

0.04"

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

BE

label

Connection 3

value

Press sleeve

label

Contour code connection 3

value

BE

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Black

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

10°C - 49°C

label

Medium temperature (continuous) (imperial)

value

50°F - 120.2°F

label

With sealing rings/gaskets

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
