group: ML7114
sprinkler
fire protection
VdS
item number
size
dimensions
weight
packaging
gtin
item number
size
32
dimensions
140x90x39 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05414764189874
item number
size
40
dimensions
151x99x47 mm
weight
0.24 kg
packaging
bag (5 pce)
gtin
05414764189911
item number
size
50
dimensions
191x124x57 mm
weight
0.44 kg
packaging
bag (1 pce)
gtin
05414764189959
item number
size
63
dimensions
234x152x70 mm
weight
0.77 kg
packaging
bag (1 pce)
gtin
05414764189997

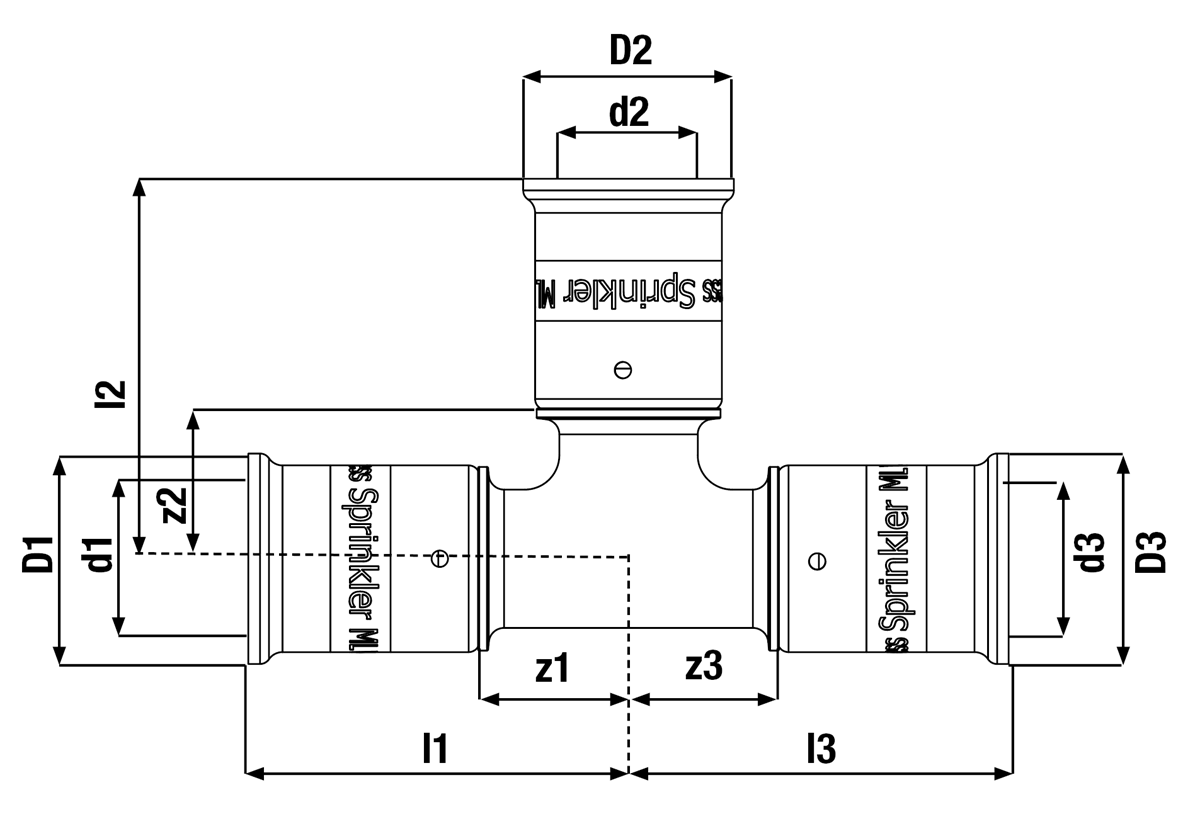

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
6350355size
32
d1
32.0
DN1
DN25
l1
70
z1
34
d2
32.0
DN2
DN25
l2
70
z2
34
d3
32.0
DN3
DN25
l3
70
z3
34
item number
6350366size
40
d1
40.0
DN1
DN32
l1
75
z1
39
d2
40.0
DN2
DN32
l2
75
z2
39
d3
40.0
DN3
DN32
l3
75
z3
39
item number
6350377size
50
d1
50.0
DN1
DN40
l1
96
z1
45
d2
50.0
DN2
DN40
l2
96
z2
45
d3
50.0
DN3
DN40
l3
96
z3
45
item number
6350388size
63
d1
63.0
DN1
DN50
l1
117
z1
53
d2
63.0
DN2
DN50
l2
117
z2
53
d3
63.0
DN3
DN50
l3
117
z3
53
color
black
materials
plastic (PVDF)
finishing
none
shape
T-piece (90º)
connection type
press (BE), Press (BE)
sealing
EPDM
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
HS code
39174000
brand
VSH
series
XPress Sprinkler ML
type
ML7114
max operating pressure liquid
value depends on the item view items
min. medium temperature
10 °C
max medium temperature
49 °C
peak medium temperature
95 °C
label
value
label
ETIM class
label
Material connection 1
value
Polyvinylidene fluoride (PVDF)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Polyvinylidene fluoride (PVDF)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
Polyvinylidene fluoride (PVDF)
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
BE
label
Connection 2
value
Press sleeve
label
Contour code connection 2
value
BE
label
Connection 3
value
Press sleeve
label
Contour code connection 3
value
BE
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Black
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
10°C - 49°C
label
Medium temperature (continuous) (imperial)
value
50°F - 120.2°F
label
With sealing rings/gaskets
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
With connection indicator
value
Yes
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
Yes
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
