VSH XPress Sprinkler ML repair coupling (2 x press)

VSH XPress Sprinkler ML repair coupling (2 x press)

ML7103

applications

sprinkler

solutions

fire protection

approvals

VdS
item number size weight dimensions packaging gtin
123459902 40 0.23 kg 179x49x49 mm bag (1 pce) 05414764450806
123459903 50 0.37 kg 211x59x59 mm bag (1 pce) 05414764450844
123459904 63 0.61 kg 236x72x72 mm bag (1 pce) 05414764450882

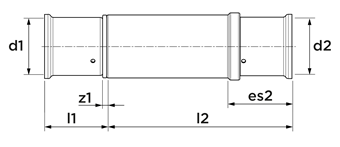

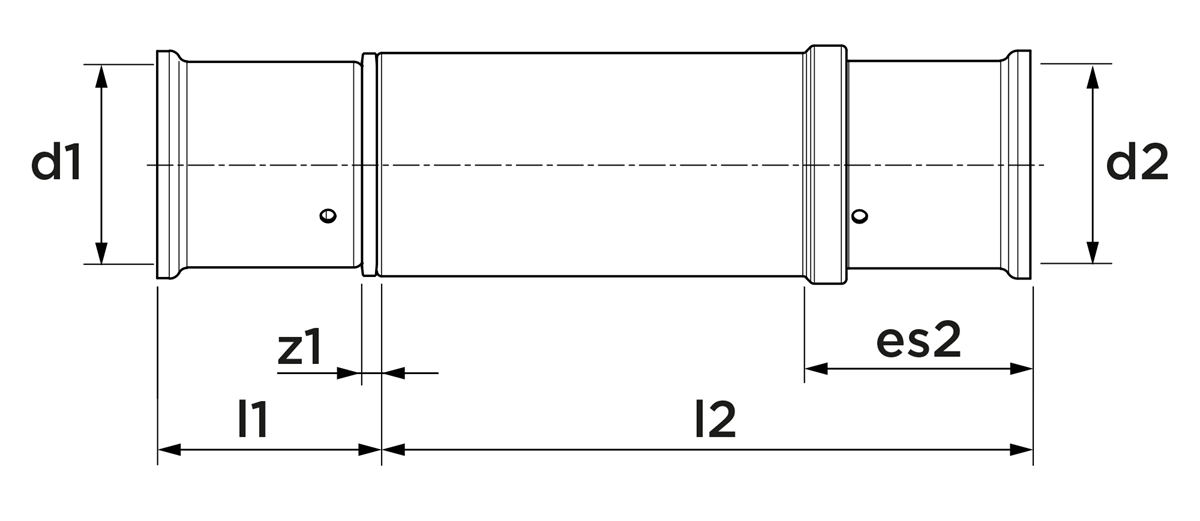

item number size d1 DN1 l1 z1 d2 DN2 l2 es2
123459902 40 40.0 DN32 45 3 40.0 DN32 134 44
123459903 50 50.0 DN40 58 3 50.0 DN40 153 59
123459904 63 63.0 DN50 71 3 63.0 DN50 166 72
see above for the diagram related to these dimensions
color black
materials plastic (PVDF)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type press (BE)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 39174000
brand VSH
series XPress Sprinkler ML
type ML7103
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Polyvinylidene fluoride (PVDF)
Material quality connection 1 Polyvinylidene fluoride (PVDF) (expired)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Plastic (expired)
Material quality connection 2 Polyvinylidene fluoride (PVDF) (expired)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Reducing No
Eccentric No
System specific Yes
Connection 1 Press sleeve
Contour code connection 1 BE
Connection 2 Press sleeve
Contour code connection 2 BE
Main colour fitting Black
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
Working length connection 1 3mm
Working length connection 1 (imperial) 0.12"
Medium temperature (continuous) 10°C - 49°C
Medium temperature (continuous) (imperial) 50°F - 120.2°F
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator Yes
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark Yes
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
