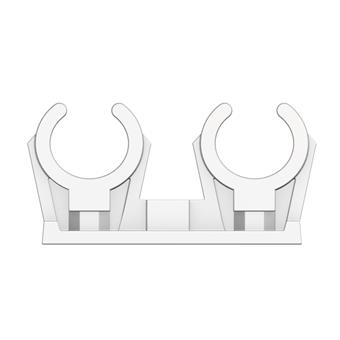

KSD clip plastic white

group: KSD

For horizontal or vertical fitting of copper pipes.
  • Fast mounting.
  • Double clip.
  • read more
    read less
    if the download did not start automatically, click here

    PDF generation failed, please try again later

    applications

    heating

    heating

    potable water

    potable water

    segments

    residential

    residential

    commercial building

    commercial building

    approvals

    no approvals available

    • assortment
    • dimensions
    • specifications
    • downloads
    • ETIM

    code

    size

    dimensions

    weight

    packaging

    gtin

    size

    10

    dimensions

    21x44x16 mm

    weight

    0 kg

    packaging

    bag (50 pce)

    gtin

    08719313022709

    size

    12

    dimensions

    19x50x16 mm

    weight

    0 kg

    packaging

    bag (50 pce)

    gtin

    08719313022723

    size

    15

    dimensions

    27x57x16 mm

    weight

    0 kg

    packaging

    bag (50 pce)

    gtin

    08719313022747

    size

    18

    dimensions

    33x60x16 mm

    weight

    0 kg

    packaging

    bag (50 pce)

    gtin

    08719313022761

    size

    22

    dimensions

    39x70x16 mm

    weight

    0.01 kg

    packaging

    bag (50 pce)

    gtin

    08719313022785

    code

    size

    size

    10

    size

    12

    size

    15

    size

    18

    size

    22

    technical drawing for product

    product info

    item

    KSD clip plastic white

    item number with gtin

    KSD

    manufacturer

    Aalberts integrated piping systems B.V. (VSH)

    weight

    0.01 kg

    dimensions

    39x70x16 mm

    characteristics

    materials

    plastic (PP-R (Polypropylene))

    finishing

    none

    technical

    min. medium temperature

    -30 °C

    max medium temperature

    120 °C

    general

    product group

    bevestiging (snapper mounting)

    HS code

    39259010

    brand

    FastFix

    series

    clips - for plastic pipe

    type

    KSD

    image for ks_lh11044_p.jpg

    image for printing | jpg


    image for KSD

    image | jpg

    KSD

    image for Diagram

    diagram | jpg

    Diagram

    image for Diagram

    diagram | jpg

    Diagram

    label

    value

    label

    etim-class

    label

    Material pipe bracket

    value

    Polypropylene (PP)

    label

    Surface protection

    value

    Untreated

    label

    Inlay

    value

    None
