group: K7267
The VSH Multipress K7267 is a radiator connection Ni with 2 press ends and a male end. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.
heating
cooling
residential
commercial building
KOMO
item number
size
dimensions
weight
packaging
gtin
item number
size
16xØ15x16 l=300mm Ni
dimensions
311x79x22 mm
weight
0.19 kg
packaging
carton (40 pce)
gtin
08711985277753
item number
size
20xØ15x20 l=300mm Ni
dimensions
313x79x26 mm
weight
0.26 kg
packaging
carton (30 pce)
gtin
08711985277777

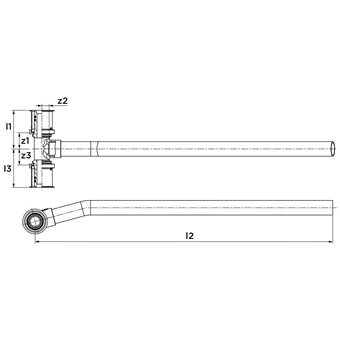

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
item number
3805208size
16xØ15x16 l=300mm Ni
d1
16.0
DN1
DN12
l1
40
z1
17
d2
15.0
DN2
DN12
l2
300
z2
6
d3
16.0
DN3
DN12
l3
40
z3
17
item number
3805230size
20xØ15x20 l=300mm Ni
d1
20.0
DN1
DN15
l1
40
z1
17
d2
15.0
DN2
DN12
l2
300
z2
8
d3
20.0
DN3
DN15
l3
40
z3
17
color
silver
materials
brass
finishing
nickel-plated
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
T-piece (15º)
connection type
press (TH/U), tube end, Press (TH/U)
sealing
EPDM
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
MultiPress
type
K7267
SCIP
e83ea394-2a3f-4a9f-92a4-760b0a4b74f8
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Nickel-plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Nickel-plated
label
Material connection 3
value
Brass
label
Material quality connection 3
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 3
value
Nickel-plated
label
Model
value
T-piece
label
Angle
value
15°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Wall thickness, connection 1
value
0.63mm
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
TH/U
label
Nominal diameter connection 2
value
DN 12
label
Outer pipe diameter connection 2
value
15mm
label
Outer pipe diameter connection 2 (imperial)
value
0.59"
label
Connection 2
value
Soldered end
label
Wall thickness, connection 3
value
0.63mm
label
Connection 3
value
Press sleeve
label
Contour code connection 3
value
TH/U
label
Flange compression class
value
PN 10
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Main colour fitting
value
Grey
label
Length of connection 1
value
39.5mm
label
Length of connection 1 (imperial)
value
1.56"
label
Working length connection 1
value
16.5mm
label
Working length connection 1 (imperial)
value
0.65"
label
High tensile strength
value
Yes
label
Length of connection 2
value
300mm
label
Length of connection 2 (imperial)
value
11.81"
label
Length of connection 3
value
39.5mm
label
Length of connection 3 (imperial)
value
1.56"
label
Working length connection 3
value
16.5mm
label
Working length connection 3 (imperial)
value
0.65"
label
Max. operating pressure at 20 °C
value
10bar
label
Max. operating pressure at 20 °C (imperial)
value
145.04psi
label
Medium temperature (continuous)
value
-20°C - 70°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 158°F
label
With sealing rings/gaskets
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
With buffer stud
value
Yes
label
Capped
value
No
label
With connection indicator
value
Yes
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
Yes
label
Gastec QA - AR 214 (H2)
value
No
