group: K7257
The VSH Multipress K7257 is a double wall plate on bracket with 2 press and female thread ends. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.
potable water
building installations
DVGW Wasser
KIWA
KOMO
VA (ETA)
WRAS
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
3805060 | 16xG1/2" | 0.52 kg | 75x210x45 mm | bag (1 pce) | 08711985293685 |
item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 | z3 | d4 | DN4 | l4 | z4 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3805060 | 16xG1/2" | 16.0 | DN12 | 45 | 22 | 16.0 | DN12 | 45 | 22 | 16.0 | 1/2" (DN15) | 20 | 8 | 16.0 | 1/2" (DN15) | 20 | 8 |
color | brass |
---|---|
materials | brass (CW617N) |
finishing | none |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | Wall plate |
connection type | press (TH/U), G - female thread gas cylindrical (BSPP) |
sealing | EPDM |
product group | fittings |
---|---|
ETIM class | EC010162 Wall plate on bracket |
HS code | 74122000 |
brand | VSH |
series | MultiPress |
type | K7257 |
SCIP | e83ea394-2a3f-4a9f-92a4-760b0a4b74f8 |

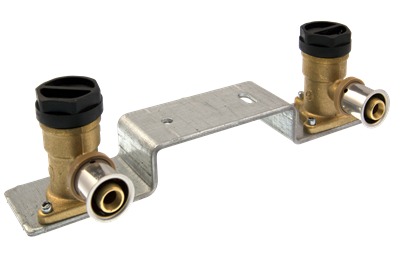

3805060 image |
png | download |
VSH MultiPress ETA 16-63mm certifications |
download | |
VSH MultiPress KIWA 14-40mm certifications |
download | |
VSH MultiPress KOMO 14-40mm certifications |
download | |
VSH MultiPress WRAS 16-63mm certifications |
download | |
Diagram diagram |
png | download |

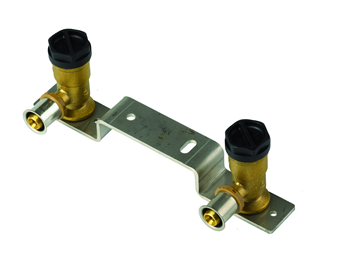

K7257 image |
png | download |
VSH MultiPress installation instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC010162 Wall plate on bracket |
Model | Double bridge |
System specific | Yes |
Surface protection | Untreated |
Nominal diameter connection | DN 12 |
Outer pipe diameter connection | 16mm |
Outer pipe diameter connection (imperial) | 0.63" |
Connection | Press sleeve |
Thread size tap connection | 1/2 inch |
Length of connection 1 | 44.5mm |
Length of connection 1 (imperial) | 1.75" |
Working length connection 1 | 22mm |
Working length connection 1 (imperial) | 0.87" |
Wall thickness, connection 1 | 0.63mm |
Length of connection 2 | 20mm |
Length of connection 2 (imperial) | 0.79" |
Working length connection 2 | 8mm |
Working length connection 2 (imperial) | 0.31" |
Wall thickness, connection 2 | 0.63mm |
Length from wall plate | 45mm |
Distance centre-to-centre | 153mm |
Distance centre-to-centre (imperial) | 6.02" |
Max. operating pressure at 20 °C | 10bar |
Max. operating pressure at 20 °C (imperial) | 145.04psi |
With connection indicator | Yes |
With protective cap | Yes |
Medium temperature (continuous) | -20°C - 70°C |
Medium temperature (continuous) (imperial) | -4°F - 158°F |
DVGW quality mark for gas | No |
DVGW quality mark for water | Yes |
KOMO certified | Yes |
