VSH MultiPress reduced T-piece brass (3 x press)

group: K7242

The VSH Multipress K7242 is a reduced T-piece with 3 press ends. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

segments

residential

residential

commercial building

commercial building

approvals

ACS

ACS

DVGW Wasser

DVGW Wasser

KIWA

KIWA

KOMO

KOMO

QB (CSTBat)

QB (CSTBat)

VA (ETA)

VA (ETA)

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

3802293

size

16x14x14

d1

16.0

DN1

DN12

l1

38

z1

15

d2

14.0

DN2

DN10

l2

41

z2

18

d3

14.0

DN3

DN10

l3

38

z3

15

item number

3802315

size

16x14x16

d1

16.0

DN1

DN12

l1

39

z1

16

d2

14.0

DN2

DN12

l2

41

z2

19

d3

16.0

DN3

DN10

l3

38

z3

16

item number

123459812

size

20x16x16

d1

20.0

DN1

DN15

l1

41

z1

18

d2

16.0

DN2

DN12

l2

43

z2

20

d3

16.0

DN3

DN12

l3

41

z3

18

item number

123459814

size

20x16x20

d1

20.0

DN1

DN15

l1

41

z1

18

d2

20.0

DN2

DN15

l2

45

z2

22

d3

16.0

DN3

DN12

l3

41

z3

18

item number

123459816

size

25x20x16

d1

25.0

DN1

DN20

l1

50

z1

18

d2

16.0

DN2

DN12

l2

46

z2

23

d3

20.0

DN3

DN15

l3

40

z3

17

item number

123459818

size

25x16x20

d1

25.0

DN1

DN20

l1

52

z1

20

d2

20.0

DN2

DN15

l2

46

z2

20

d3

16.0

DN3

DN12

l3

42

z3

19

item number

123461021

size

32x25x25

d1

32.0

DN1

DN25

l1

61

z1

31

d2

25.0

DN2

DN20

l2

63

z2

30

d3

25.0

DN3

DN20

l3

60

z3

28

item number

3803140

size

25x16x25

d1

25.0

DN1

DN20

l1

56

z1

24

d2

25.0

DN2

DN20

l2

59

z2

27

d3

16.0

DN3

DN15

l3

46

z3

23

item number

123459819

size

25x20x20

d1

25.0

DN1

DN20

l1

52

z1

20

d2

20.0

DN2

DN15

l2

46

z2

19

d3

20.0

DN3

DN15

l3

42

z3

19

item number

123459821

size

25x20x25

d1

25.0

DN1

DN20

l1

56

z1

24

d2

25.0

DN2

DN20

l2

59

z2

27

d3

20.0

DN3

DN15

l3

46

z3

23

item number

3821917

size

50x40x25

d1

50.0

DN1

DN40

l1

65

z1

27

d2

25.0

DN2

DN20

l2

71

z2

39

d3

40.0

DN3

DN32

l3

69

z3

27

item number

3821941

size

50x40x32

d1

50.0

DN1

DN40

l1

69

z1

30

d2

32.0

DN2

DN20

l2

72

z2

39

d3

40.0

DN3

DN32

l3

72

z3

30

item number

3821972

size

50x40x40

d1

50.0

DN1

DN40

l1

72

z1

34

d2

40.0

DN2

DN32

l2

81

z2

39

d3

40.0

DN3

DN32

l3

76

z3

34

item number

3822027

size

63x50x32

d1

63.0

DN1

DN50

l1

91

z1

31

d2

32.0

DN2

DN25

l2

78

z2

45

d3

50.0

DN3

DN32

l3

68

z3

30

item number

3822049

size

63x50x40

d1

63.0

DN1

DN50

l1

95

z1

35

d2

40.0

DN2

DN25

l2

89

z2

47

d3

50.0

DN3

DN40

l3

72

z3

34

item number

3822051

size

63x50x50

d1

63.0

DN1

DN50

l1

101

z1

41

d2

50.0

DN2

DN40

l2

84

z2

46

d3

50.0

DN3

DN40

l3

79

z3

41

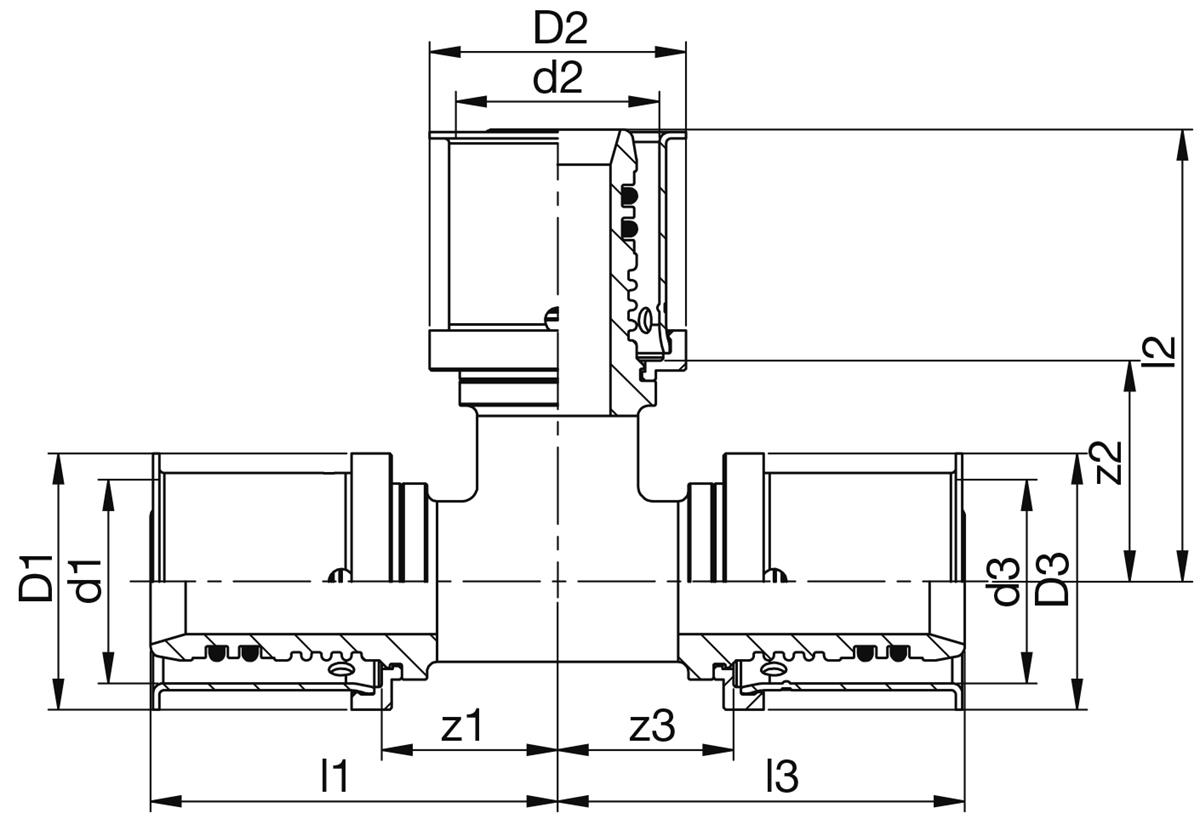

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

T-piece, reducer (90º)

connection type

press (U, TH, TH/U), Press (U, TH, TH/U)

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

MultiPress

type

K7242

SCIP

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

peak medium temperature

95 °C

image for K7242

image | png

K7242

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

VSH MultiPress installation Instructions

certifications | pdf

VSH MultiPress ETA 16-63mm

certifications | pdf

VSH MultiPress KIWA 14-40mm

certifications | pdf

VSH MultiPress KIWA 50-63mm

certifications | pdf

VSH MultiPress KOMO 14-40mm

certifications | pdf

VSH MultiPress KOMO 50-63mm

certifications | pdf

VSH MultiPress WRAS 16-63mm

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

Yes

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Connection 2

value

Press sleeve

label

Connection 3

value

Press sleeve

label

Flange compression class

value

PN 10

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Brass

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

Yes

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
