VSH MultiPress Gas elbow 90° (2 x press)

group: K7230G

The VSH Multipress Gas K7230G is a 90° elbow with 2 press ends, applicable for gas. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

GASTEC

GASTEC

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

3860219

size

16

d1

16.0

DN1

DN12

l1

41

z1

18

d2

16.0

DN2

DN12

l2

41

z2

18

item number

3860221

size

20

d1

20.0

DN1

DN15

l1

45

z1

22

d2

20.0

DN2

DN15

l2

45

z2

22

item number

3860230

size

25

d1

25.0

DN1

DN20

l1

59

z1

27

d2

25.0

DN2

DN20

l2

59

z2

27

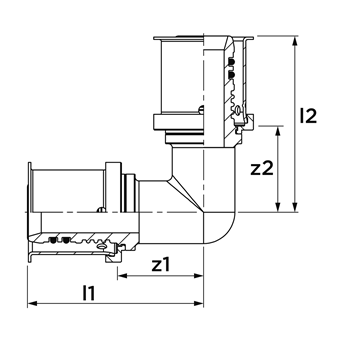

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Elbow

connection type

press (U, TH/U)

sealing

HNBR

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

MultiPress Gas

type

K7230G

SCIP

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Connection 2

value

Press sleeve

label

Main colour fitting

value

Brass

label

Material sealing

value

Hydrogenated acrylonitrile butadiene rubber (HNBR)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-10°C - 60°C

label

Medium temperature (continuous) (imperial)

value

14°F - 140°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

Yes

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
