VSH MultiPress crossing pair (6 x press)

group: K7201

The VSH Multipress K7201 is a crossing pair with 6 press ends. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

residential

residential

commercial building

commercial building

approvals

DVGW Wasser

DVGW Wasser

KIWA

KIWA

KOMO

KOMO

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

d4

DN4

l4

z4

d5

DN5

l5

z5

d6

DN6

l6

z6

item number

3823204

size

16

d1

16.0

DN1

DN12

l1

55

z1

32

d2

16.0

DN2

DN12

l2

102

z2

29

d3

16.0

DN3

DN12

l3

54

z3

31

d4

16.0

DN4

DN12

l4

54

z4

31

d5

16.0

DN5

DN12

l5

54

z5

31

d6

16.0

DN6

DN12

l6

32

z6

54

item number

3823226

size

20x16x16

d1

20.0

DN1

DN15

l1

58

z1

35

d2

20.0

DN2

DN12

l2

105

z2

32

d3

16.0

DN3

DN12

l3

54

z3

31

d4

16.0

DN4

DN12

l4

54

z4

31

d5

16.0

DN5

DN12

l5

54

z5

31

d6

16.0

DN6

DN12

l6

55

z6

54

item number

3823237

size

20x16x20

d1

20.0

DN1

DN15

l1

58

z1

35

d2

20.0

DN2

DN12

l2

105

z2

32

d3

16.0

DN3

DN15

l3

54

z3

31

d4

16.0

DN4

DN12

l4

54

z4

31

d5

20.0

DN5

DN12

l5

57

z5

34

d6

20.0

DN6

DN15

l6

58

z6

35

item number

3823248

size

20

d1

20.0

DN1

DN15

l1

58

z1

35

d2

20.0

DN2

DN15

l2

105

z2

32

d3

20.0

DN3

DN15

l3

57

z3

34

d4

20.0

DN4

DN15

l4

57

z4

34

d5

20.0

DN5

DN15

l5

57

z5

34

d6

20.0

DN6

DN15

l6

58

z6

35

item number

size

d4

DN4

l4

z4

d5

DN5

l5

z5

d6

DN6

l6

z6

16

16.0

DN12

54

31

16.0

DN12

54

31

16.0

DN12

32

54

20x16x16

16.0

DN12

54

31

16.0

DN12

54

31

16.0

DN12

55

54

20x16x20

16.0

DN12

54

31

20.0

DN12

57

34

20.0

DN15

58

35

20

20.0

DN15

57

34

20.0

DN15

57

34

20.0

DN15

58

35

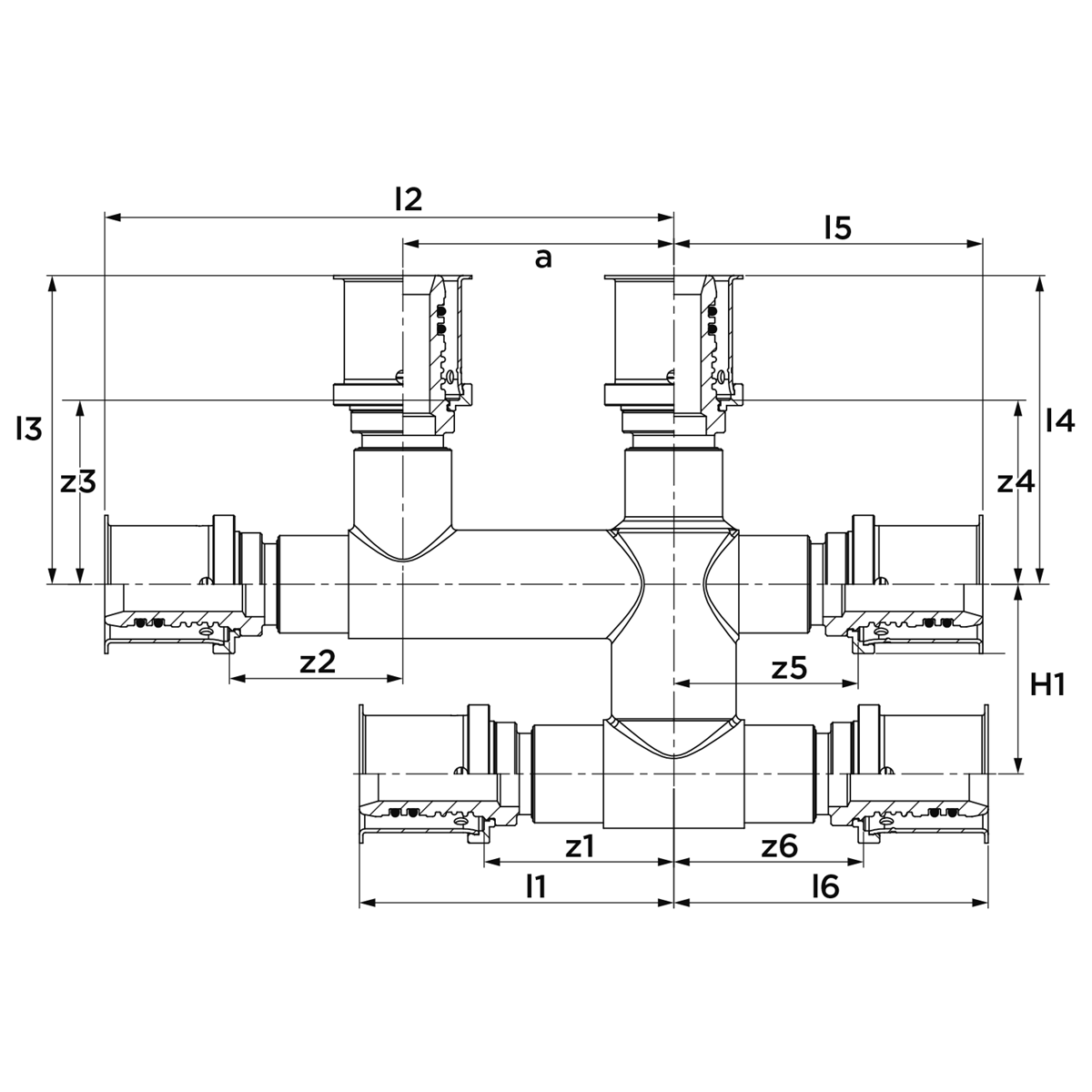

technical drawing for product

characteristics

color

silver

materials

brass (CW617N)

finishing

nickel-plated

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Cross

connection type

press (TH/U), Press (TH/U), Press (U, TH, universal)

sealing

EPDM

general

product group

fittings

ETIM class

EC010367 Fitting with 6 connections

HS code

74122000

brand

VSH

series

MultiPress

type

K7201

SCIP

e83ea394-2a3f-4a9f-92a4-760b0a4b74f8

label

value

label

Material

value

Brass

label

Surface protection

value

Nickel-plated

label

Multi-part

value

No

label

Reducing

value

No

label

System specific

value

Yes

label

Wall thickness, connection 1

value

0.63mm

label

Connection 1

value

Press sleeve

label

Wall thickness, connection 2

value

0.63mm

label

Connection 2

value

Press sleeve

label

Wall thickness, connection 3

value

0.63mm

label

Connection 3

value

Press sleeve

label

Connection 4

value

Press sleeve

label

Connection 5

value

Press sleeve

label

Connection 6

value

Press sleeve

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Grey

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With sealing rings/gaskets

value

No

label

With buffer stud

value

Yes

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

label

Gastec QA - AR 214 (H2)

value

No
