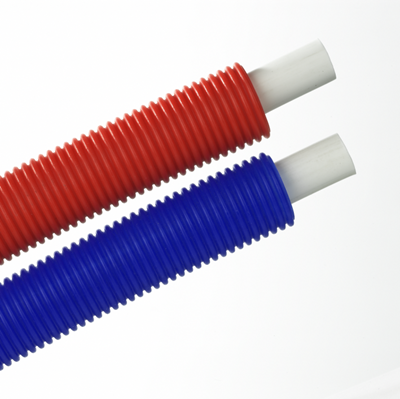

Product Image for VSH UltraPress multilayer tube with casing

Product Image for VSH UltraPress multilayer tube with casing

group: K7145

The VSH UltraPress K7145 is a multilayer tube with casing. With VSH UltraPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH UltraPress is the ideal plastic tube system due to its handy features.
Note: only use VSH UltraPress pipe in combination with VSH UltraPress fittings.

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

heating

compressed air

show all

show less

residential

industry

commercial building

show all

show less

DVGW Wasser

KIWA

KOMO

show all

show less

code

size

dimensions

weight

packaging

gtin

code

size

14x2 red

dimensions

1000x14x14 mm

weight

0.13 kg

packaging

carton (75 m)

gtin

08711985274547

code

size

14x2 blue

dimensions

1000x14x14 mm

weight

0.13 kg

packaging

carton (75 m)

gtin

08711985274554

code

size

16x2 red

dimensions

1000x16x16 mm

weight

0.13 kg

packaging

carton (75 m)

gtin

08711985274561

code

size

16x2 blue

dimensions

1000x16x16 mm

weight

0.13 kg

packaging

carton (75 m)

gtin

08711985274578

code

size

20x2 red

dimensions

1000x16x16 mm

weight

0.15 kg

packaging

carton (75 m)

gtin

08711985274585

code

size

20x2 blue

dimensions

1000x20x20 mm

weight

0.15 kg

packaging

carton (75 m)

gtin

08711985274592

code

size

25x2,5 red

dimensions

1000x25x25 mm

weight

0.27 kg

packaging

carton (50 m)

gtin

08711985274608

code

size

25x2,5 blue

dimensions

1000x25x25 mm

weight

0.27 kg

packaging

carton (50 m)

gtin

08711985274615

product info

item

VSH UltraPress multilayer tube with casing

item number with gtin

K7145

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.27 kg

dimensions

1000x25x25 mm

characteristics

color

red, blue

materials

aluminium, plastic (PE-RT)

finishing

none

shape

Coil

connection type

tube end

pressure rating (PN)

PN 10

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

general

product group

buizen (multilayer, ribbed, coil)

ETIM class

EC010225 Multi-layered pipe, smooth

HS code

39173900

brand

VSH

series

UltraPress

type

K7145

image for K7145

image | png

K7145

installation- & maintenance document | pdf

VSH UltraPress installation Instructions

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

VSH UltraPress KIWA 14-40mm

certifications | pdf

VSH UltraPress KOMO 14-40mm

certifications | pdf

VSH UltraPress WRAS 16-63mm

label

value

label

etim-class

value

EC010225 Multi-layered pipe, smooth

label

Connection 1

value

Tube end

label

Connection 2

value

Tube end

label

Article compression class

value

PN 10

label

System specific

value

Yes

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

With mantle pipe

value

Yes

label

With thermal insulation

value

No

label

Capped

value

No

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

code

carbon footprint (A-C) embodied carbon

data source

code

-

-

-

-

code

-

-

-

-

code

carbon footprint (A-C) embodied carbon

1.4kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

1.4kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

1.6kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

1.6kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

2.84kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

2.84kgCO2e

data source

TM65
