VSH UltraPress multilayer tube

code

size

dimensions

weight

packaging

gtin

code

3840001

size

14x2.0

dimensions

1000x14x14 mm

weight

0.09 kg

packaging

carton (200 m)

gtin

08711985274431

code

3840021

size

16x2.0

dimensions

1000x16x16 mm

weight

0.13 kg

packaging

carton (100 m)

gtin

08711985463637

code

123461023

size

16x2.0

dimensions

1000x16x16 mm

weight

0.13 kg

packaging

carton (50 m)

gtin

08711985576726

code

3840012

size

16x2.0

dimensions

1000x16x16 mm

weight

0.13 kg

packaging

carton (200 m)

gtin

08711985274448

code

123459800

size

16x2.0

dimensions

1000x16x16 mm

weight

0.11 kg

packaging

bundle (50 m)

gtin

08711985506105

code

3840034

size

20x2.0

dimensions

1000x20x20 mm

weight

0.18 kg

packaging

carton (100 m)

gtin

08711985274455

code

123461024

size

20x2.0

dimensions

1000x20x20 mm

weight

0.18 kg

packaging

carton (50 m)

gtin

08711985576740

code

123459801

size

20x2.0

dimensions

1000x20x20 mm

weight

0.14 kg

packaging

bundle (35 m)

gtin

08711985506129

code

3840045

size

25x2.5

dimensions

1000x25x25 mm

weight

0.27 kg

packaging

carton (50 m)

gtin

08711985274462

code

123459802

size

25x2.5

dimensions

1000x25x25 mm

weight

0.22 kg

packaging

bundle (40 m)

gtin

08711985506143

code

3840056

size

32x3.0

dimensions

1000x32x32 mm

weight

0.37 kg

packaging

carton (50 m)

gtin

08711985274479

code

3840254

size

32x3.0

dimensions

5000x32x32 mm

weight

1.83 kg

packaging

bundle (40 m)

gtin

08711985274523

code

3840067

size

40x3.5

dimensions

1000x40x40 mm

weight

0.51 kg

packaging

carton (25 m)

gtin

08711985274486

code

3840265

size

40x3.5

dimensions

5000x40x40 mm

weight

2.55 kg

packaging

bundle (25 m)

gtin

08711985274530

code

3840287

size

50x4.0

dimensions

1000x50x50 mm

weight

4.43 kg

packaging

bundle (15 m)

gtin

08711985364989

code

3840298

size

63x4.5

dimensions

1000x63x63 mm

weight

6.33 kg

packaging

bundle (5 m)

gtin

08711985364996

product info

item

VSH UltraPress multilayer tube

item number with gtin

K7140

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

6.33 kg

dimensions

1000x63x63 mm

characteristics

color

white

materials

aluminium, plastic (PE-RT)

finishing

none

shape

Coil, Length

connection type

tube end

pressure rating (PN)

PN 10

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

general

product group

buizen (multilayer, coil, smooth, straight)

ETIM class

EC010225 Multi-layered pipe, smooth

HS code

39173900

brand

VSH

series

UltraPress

type

K7140

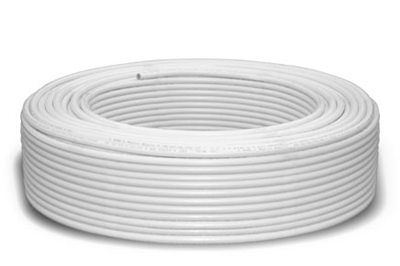

image | png

K7140

installation- & maintenance document | pdf

VSH UltraPress installation Instructions

image | png

K7140-lengte

certifications | pdf

TM65 Embodied Carbon Declaration

certifications | pdf

VSH UltraPress ETA 16-63mm

certifications | pdf

VSH UltraPress KIWA 14-40mm

certifications | pdf

VSH UltraPress KOMO 14-40mm

certifications | pdf

VSH UltraPress WRAS 16-63mm

label

value

label

etim-class

value

EC010225 Multi-layered pipe, smooth

label

Connection 1

value

Tube end

label

Connection 2

value

Tube end

label

Article compression class

value

PN 10

label

System specific

value

Yes

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Pipe colour

value

White

label

Colour outer sheath

value

White

label

Capped

value

No

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

Yes

code

carbon footprint (A-C) embodied carbon

data source

code

3840001

-

code

3840021

carbon footprint (A-C) embodied carbon

1.36kgCO2e

data source

TM65

code

123461023

carbon footprint (A-C) embodied carbon

1.36kgCO2e

data source

TM65

code

3840012

carbon footprint (A-C) embodied carbon

1.36kgCO2e

data source

TM65

code

123459800

-

code

3840034

carbon footprint (A-C) embodied carbon

1.84kgCO2e

data source

TM65

code

123461024

carbon footprint (A-C) embodied carbon

1.84kgCO2e

data source

TM65

code

123459801

-

code

3840045

carbon footprint (A-C) embodied carbon

2.88kgCO2e

data source

TM65

code

123459802

-

code

3840056

carbon footprint (A-C) embodied carbon

3.83kgCO2e

data source

TM65

code

3840254

carbon footprint (A-C) embodied carbon

19.17kgCO2e

data source

TM65

code

3840067

carbon footprint (A-C) embodied carbon

5.36kgCO2e

data source

TM65

code

3840265

carbon footprint (A-C) embodied carbon

26.79kgCO2e

data source

TM65

code

3840287

carbon footprint (A-C) embodied carbon

46.49kgCO2e

data source

TM65

code

3840298

carbon footprint (A-C) embodied carbon

66.46kgCO2e

data source

TM65
