K7029
The VSH Multipress K7029 is an 90° elbow with a press- and female thread end. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 3821510 | 16xG1/2" | 0.08 kg | 31x54x22 mm | bag (10 pce) | 08711985274110 |
| 3821554 | 20xG1/2" | 0.1 kg | 33x54x26 mm | bag (10 pce) | 08711985274127 |
| 3821565 | 20xG3/4" | 0.13 kg | 36x64x26 mm | bag (5 pce) | 08711985274134 |
| 3821587 | 25xG3/4" | 0.18 kg | 41x77x31 mm | bag (5 pce) | 08711985274141 |
| 3821598 | 25xG1" | 0.24 kg | 43x87x31 mm | bag (5 pce) | 08711985274158 |
| 3821599 | 32xG1" | 0.34 kg | 79x38x43 mm | bag (2 pce) | 08711985281026 |
| 3821631 | 40xG1 1/4" | 0.57 kg | 57x114x46 mm | bag (2 pce) | 08711985293890 |
| item number | size | d1 | DN1 | l1 | z1 | DN2 | l2 | z2 | slw0 |
|---|---|---|---|---|---|---|---|---|---|
| 3821510 | 16xG1/2" | 16.0 | DN12 | 42 | 19 | 1/2" (DN15) | 32 | 20 | 13 |
| 3821554 | 20xG1/2" | 20.0 | DN15 | 42 | 19 | 1/2" (DN15) | 32 | 20 | 17 |
| 3821565 | 20xG3/4" | 20.0 | DN15 | 45 | 22 | 3/4" (DN20) | 38 | 24 | 17 |
| 3821587 | 25xG3/4" | 25.0 | DN20 | 58 | 25 | 3/4" (DN20) | 39 | 25 | 19 |
| 3821598 | 25xG1" | 25.0 | DN20 | 62 | 29 | 1" (DN25) | 43 | 27 | 19 |
| 3821599 | 32xG1" | 16.0 | DN25 | 65 | 32 | 1" (DN25) | 48 | 32 | 27 |
| 3821631 | 40xG1 1/4" | 40.0 | DN32 | 83 | 41 | 1 1/4" (DN32) | 54 | 34 | 0 |
| color | brass |
|---|---|
| materials | brass (CW617N) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Elbow (90º) |
| connection type | press (U, TH/U), G - female thread gas cylindrical (BSPP) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 74122000 |
| brand | VSH |
| series | MultiPress |
| type | K7029 |
| SCIP | e83ea394-2a3f-4a9f-92a4-760b0a4b74f8 |
 K7029 image |
png | download |
VSH MultiPress ETA 16-63mm certifications |
download | |
VSH MultiPress KIWA 14-40mm certifications |
download | |
VSH MultiPress KOMO 14-40mm certifications |
download | |
VSH MultiPress WRAS 16-63mm certifications |
download | |

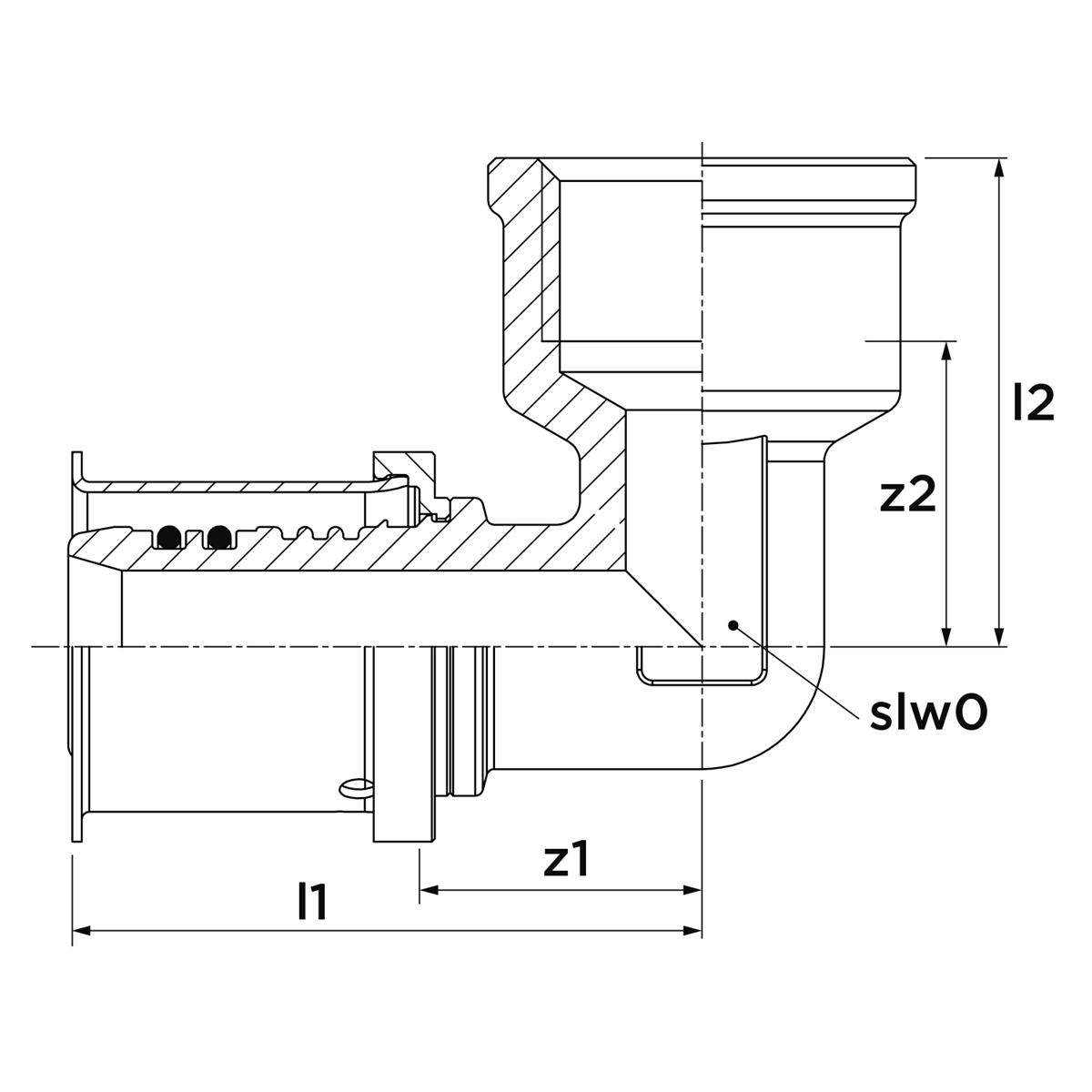

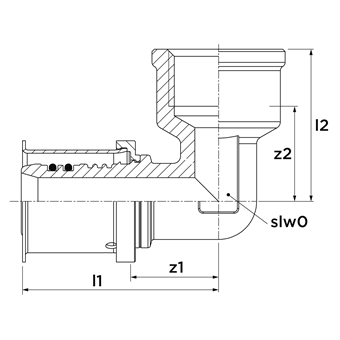

 Diagram diagram |
png | download |
 3821510_p.png image |
png | download |
 3821554_p.png image |
png | download |
 3821565_p.png image |
png | download |
 3821587_p.png image |
png | download |
VSH MultiPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Brass |
| Material quality connection 1 | CuZn40Pb2 (CW617N) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Brass |
| Material quality connection 2 | CuZn40Pb2 (CW617N) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 90° |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Connection 2 | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Main colour fitting | Brass |
| Flange compression class | PN 10 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -20°C - 70°C |
| Medium temperature (continuous) (imperial) | -4°F - 158°F |
| Max. operating pressure at 20 °C | 10bar |
| Max. operating pressure at 20 °C (imperial) | 145.04psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | Yes |
| Certified according to NF 545 | No |
| KIWA certified | Yes |
| Gastec QA mark | No |
| KOMO certified | Yes |
