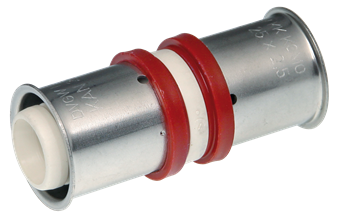

VSH MultiPress straight coupling PPSU (2 x press)

VSH MultiPress straight coupling PPSU (2 x press)

K7010P

The VSH Multipress K7010P is a straight coupling made of PPSU with 2 press ends. With VSH MultiPress, Aalberts integrated piping systems provides in a reliable and high-quality plastic tube system. VSH Multipress is the ideal plastic tube system due to its handy features.

  • Pressable with both U- and TH-profile
  • Color coding per size
  • Optimal positioning of the press jaw for fast and secure pressing
  • Leak Before Pressed function up to 32 mm

applications

potable water heating cooling compressed air

solutions

building installations

approvals

ACS DVGW Wasser KIWA KOMO QB (CSTBat) VA (ETA) WRAS
item number size weight dimensions packaging gtin
3820014 16 0.02 kg 55x22x22 mm bag (20 pce) 08711985273809
3820036 20 0.03 kg 55x26x26 mm bag (10 pce) 08711985273816
3820047 25 0.05 kg 75x31x31 mm bag (5 pce) 08711985273823
item number size d1 DN1 l1 z1 d2 DN2 l2 z2
3820014 16 16.0 DN12 27 5 16.0 DN12 27 5
3820036 20 20.0 DN15 27 5 20.0 DN15 27 5
3820047 25 25.0 DN20 38 5 25.0 DN20 38 5
see above for the diagram related to these dimensions
color black
materials plastic (PPSU)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type press (U, TH/U)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 39174000
brand VSH
series MultiPress
type K7010P
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Plastic (expired)
Material quality connection 1 Polyphenylsulfone (PPSU) (expired)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Plastic (expired)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing No
Eccentric No
System specific Yes
Connection 1 Press sleeve
Connection 2 Press sleeve
Main colour fitting Black
Flange compression class PN 10
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -20°C - 70°C
Medium temperature (continuous) (imperial) -4°F - 158°F
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
With sealing rings/gaskets No
Capped No
With connection indicator Yes
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water Yes
Certified according to NF 545 No
KIWA certified Yes
Gastec QA mark No
KOMO certified Yes
