VSH Multi Super reduced T-piece (3 x MSC)

group: K3073

The VSH Multi Super K3073 is a reduced T-piece with 3 compression ends. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • Multiple tube types on one fitting (Copper, Stainless, Carbon, plastic & multilayer tube)
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

compressed air

compressed air

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

0891541

size

26x20x20

d1

26.0

DN1

DN20

l1

46

z1

28

d2

20.0

DN2

DN15

l2

48

z2

32

d3

20.0

DN3

DN15

l3

45

z3

28

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

T-piece (90º)

connection type

compression, Compression

sealing

Brass

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Multi Super Compression

type

K3073

SCIP

1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

70 °C

peak medium temperature

95 °C

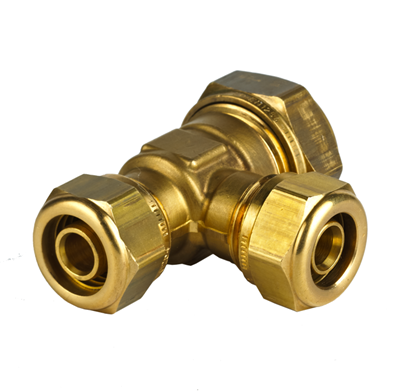

image for K3073

image | png

K3073

image for Diagram

diagram | png

Diagram

link to sheet | pdf

MSDS_VSH_Super

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn36Pb2As (CW602N)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

DN 20

label

Outer pipe diameter connection 1

value

26mm

label

Outer pipe diameter connection 1 (imperial)

value

1.02"

label

Connection 1

value

Compression ring

label

Nominal diameter connection 2

value

DN 15

label

Outer pipe diameter connection 2

value

20mm

label

Outer pipe diameter connection 2 (imperial)

value

0.79"

label

Connection 2

value

Compression ring

label

Nominal diameter connection 3

value

DN 15

label

Outer pipe diameter connection 3

value

20mm

label

Outer pipe diameter connection 3 (imperial)

value

0.79"

label

Connection 3

value

Compression ring

label

Flange compression class

value

PN 10

label

Material sealing

value

Brass

label

Main colour fitting

value

Brass

label

Length of connection 1

value

46mm

label

Length of connection 1 (imperial)

value

1.81"

label

Working length connection 1

value

28mm

label

Working length connection 1 (imperial)

value

1.1"

label

High tensile strength

value

Yes

label

Length of connection 2

value

48mm

label

Length of connection 2 (imperial)

value

1.89"

label

Working length connection 2

value

32mm

label

Working length connection 2 (imperial)

value

1.26"

label

Length of connection 3

value

45mm

label

Length of connection 3 (imperial)

value

1.77"

label

Working length connection 3

value

28mm

label

Working length connection 3 (imperial)

value

1.1"

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With sealing rings/gaskets

value

No

label

With de-aerator

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
