VSH Multi Super angle adapter 90° (MSC x insert)

VSH Multi Super angle adapter 90° (MSC x insert)

K3072

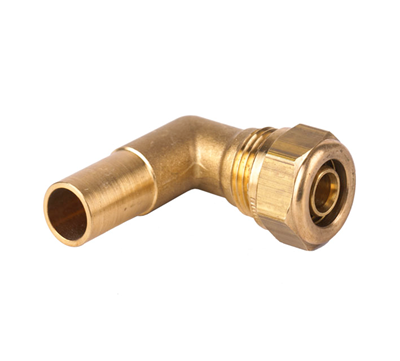

The VSH Multi Super K3072 is a 90° angle adapter with a compression and a tube end. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • Multiple tube types on one fitting (Copper, Stainless, Carbon, plastic & multilayer tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

potable water heating compressed air

solutions

building installations industry
item number size weight dimensions packaging gtin
0891418 16xØ15 0.1 kg 50x27x50 mm carton (10 pce) 08711985267891
0891429 20xØ22 0.17 kg 55x37x55 mm carton (5 pce) 08711985267914
item number size d1 DN1 l1 z1 d2 DN2 l2
0891418 16xØ15 16.0 DN12 42 29 15.0 DN12 45
0891429 20xØ22 20.0 DN15 44 27 22.0 DN20 41

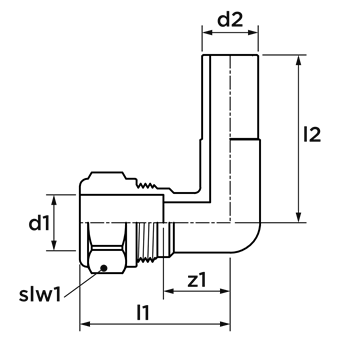

see above for the diagram related to these dimensions
color brass
materials brass (CW617N)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Elbow (90º)
connection type compression, tube end
sealing Brass
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
country of origin Netherlands
brand VSH
series Multi Super Compression
type K3072
SCIP 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
