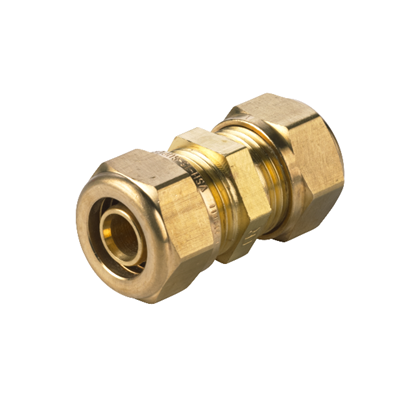

VSH Multi Super straight coupling (2 x MSC)

VSH Multi Super straight coupling (2 x MSC)

K3056

The VSH Multi Super K3056 is a straight coupling with 2 compression ends. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • Multiple tube types on one fitting (Copper, Stainless, Carbon, plastic & multilayer tube)
  • same fitting applications for water and gas
  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

potable water heating compressed air

solutions

building installations industry
item number size weight dimensions packaging gtin
0892012 14 0.11 kg 50x24x28 mm carton (10 pce) 08711985187212
0892111 16 0.11 kg 50x24x28 mm carton (10 pce) 08711985187014
0891055 20 0.27 kg 66x32x37 mm carton (5 pce) 08711985267457
item number size d1 DN1 l1 z1 d2 DN2 l2 z2 slw0 h
0892012 14 14.0 DN12 25 8 14.0 DN12 25 8 22 5.5
0892111 16 16.0 DN12 25 12 16.0 DN12 25 12 22 5.5
0891055 20 20.0 DN15 33 17 20.0 DN15 33 17 30 6.6
see above for the diagram related to these dimensions
color brass
materials brass (CW602N (DZR))
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight
connection type compression
sealing Brass
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
country of origin Netherlands
brand VSH
series Multi Super Compression
type K3056
SCIP 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Material quality connection 1 CuZn36Pb2As (CW602N)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Material quality connection 2 CuZn36Pb2As (CW602N)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing No
Eccentric No
System-specific Yes
Connection 1 Compression ring
Connection 2 Compression ring
Main colour fitting Brass
Flange compression class PN 10
Material sealing Brass
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -20°C - 70°C
Medium temperature (continuous) (imperial) -4°F - 158°F
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
With sealing rings/gaskets No
Capped No
With connection indicator No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
