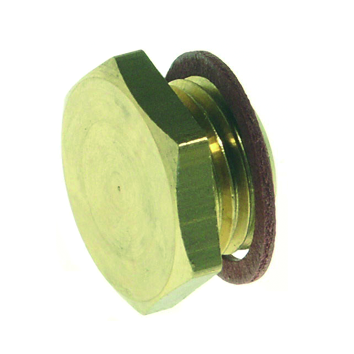

VSH plug with fiber ring

group: K2546

The VSH K2546 is a male threaded brass plug. An fiber ring is included.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

slw0

item number

0494021

size

G1/4"

d1

13.5

DN1

1/4" (DN8)

l1

10

z1

3

slw1

17

slw0

17

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

G - male thread gas cylindrical (BSPP)

general

product group

valves (accessories (valves))

ETIM class

EC003023 Fitting with 1 connection

HS code

84818079

brand

VSH

type

K2546

SCIP

a2cb64b2-a249-4d9d-aa1f-13e6b3129149

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

System specific

value

No

label

Nominal diameter connection 1

value

1/4 inch (8)

label

Outer pipe diameter connection 1

value

13.5mm

label

Outer pipe diameter connection 1 (imperial)

value

0.53"

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Main colour fitting

value

Brass

label

Length of connection 1

value

10mm

label

Length of connection 1 (imperial)

value

0.39"

label

Working length connection 1

value

3mm

label

Working length connection 1 (imperial)

value

0.12"

label

Wrench width

value

17mm

label

Wrench width (imperial)

value

0.67"

label

Wrench width union nut

value

17mm

label

Wrench width union nut (imperial)

value

0.67"

label

Max. operating pressure at max. medium temperature

value

10bar

label

With sealing rings/gaskets

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

Capped

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
