VSH Super water ball valve with drain (flat sealing, 2 x male thread)

group: K2342

The VSH K2342 is a flat-seal water ball valve with 2 male thread ends and a drain. VSH ball valves can be used in drinking water and central heating installations. A fast assembly is possible even in hard-to-reach places.

  • full bore (no flow loss)
  • Detachable handle and permanently smooth operation
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

KIWA

KIWA

item number

size

d1

DN1

z1

DN2

z2

M2

Y

V

U

a

item number

0504735

size

G3/4" (DN20R)

d1

26.9

DN1

3/4" (DN20)

z1

41

DN2

3/4" (DN20)

z2

32

M2

103

Y

50

V

26

U

16

a

90

item number

0504746

size

G1"

d1

33.7

DN1

1" (DN25)

z1

46

DN2

1" (DN25)

z2

34

M2

Y

55

V

33

U

16

a

90

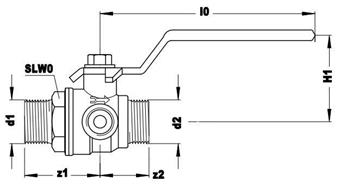

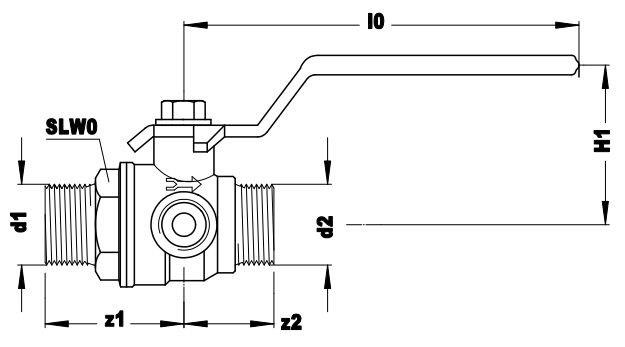

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

type

K2342

UNSPS

40141607

SCIP

0ef2a89e-2873-46da-b50a-171168b882b8

technical

max operating pressure liquid

10 bar

max medium temperature

65 °C

peak medium temperature

90 °C

image for K2342

image | png

K2342

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

Installatiehandleiding VSH Waterkogelkraan

certifications | pdf

VSH Stopkranen KIWA

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

None

label

Material ball seal

value

Polytetrafluoroethylene (PTFE)

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 10

label

Flange compression class

value

PN 10

label

With drain valve

value

Yes

label

With drain possibility (connection)

value

Yes

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

0°C - 65°C

label

Medium temperature (continuous) (imperial)

value

32°F - 149°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

2-part

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes
