VSH EA Protect including drain (2 x male thread)

group: K2332

The VSH K2332 is a water ball valve EA Protect with 2 male thread ends and a drain possibility. VSH ball valves can be used in drinking water and central heating installations. A fast assembly is possible even in hard-to-reach places.

  • full bore (no flow loss)
  • Detachable handle and permanently smooth operation
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

0504768

size

G3/4"

dimensions

145x64x63 mm

weight

0.56 kg

packaging

carton (1 pce)

gtin

08711985334432

item number

0504779

size

G1"

dimensions

173x73x80 mm

weight

0.56 kg

packaging

carton (1 pce)

gtin

08711985334463

item number

size

d1

DN1

z1

DN2

z2

item number

0504768

size

G3/4"

d1

26.9

DN1

3/4" (DN20)

z1

58

DN2

3/4" (DN20)

z2

41

item number

0504779

size

G1"

d1

33.7

DN1

1" (DN25)

z1

67

DN2

1" (DN25)

z2

46

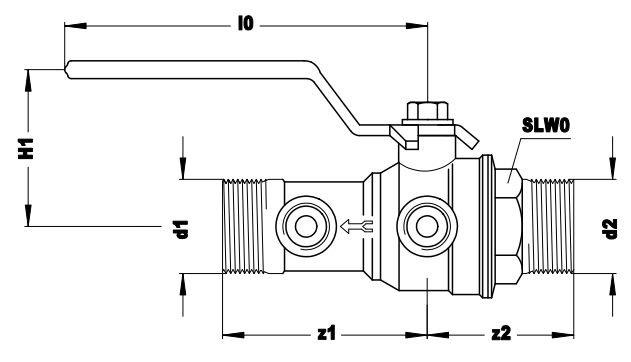

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight (0º)

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM, PTFE

general

product group

safety valves (safety valves)

ETIM class

EC011469 Check valve

HS code

84818081

brand

VSH

series

EA Protect

type

K2332

UNSPS

40141607

SCIP

0ef2a89e-2873-46da-b50a-171168b882b8

technical

max operating pressure liquid

10 bar

max medium temperature

65 °C

peak medium temperature

90 °C
