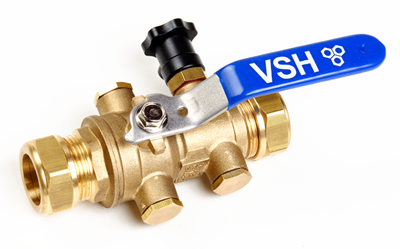

VSH Super EA Protect (2 x compression)

group: K2331

The VSH K2331 is a water ball valve EA Protect with 2 compression ends and a drain possibility. VSH ball valves can be used in drinking water and central heating installations. A fast assembly is possible even in hard-to-reach places.

  • full bore (no flow loss)
  • Detachable handle and permanently smooth operation
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

residential

residential

fire protection

fire protection

commercial building

commercial building

approvals

Belgaqua

Belgaqua

KIWA

KIWA

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

slw0

item number

0504185

size

15

d1

15.0

DN1

DN12

l1

60

z1

38

slw1

24

d2

15.0

DN2

DN12

l2

43

z2

21

slw2

24

slw0

26

item number

0504196

size

22

d1

22.0

DN1

DN20

l1

65

z1

41

slw1

32

d2

22.0

DN2

DN20

l2

49

z2

25

slw2

32

slw0

30

item number

0504207

size

28

d1

28.0

DN1

DN25

l1

75

z1

51

slw1

39

d2

28.0

DN2

DN25

l2

55

z2

31

slw2

39

slw0

37

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight (0º)

connection type

compression

pressure rating (PN)

PN 10

sealing

EPDM, PTFE

general

product group

safety valves (safety valves)

ETIM class

EC011469 Check valve

HS code

84818081

brand

VSH

series

Super

type

K2331

UNSPS

40141607

SCIP

0ef2a89e-2873-46da-b50a-171168b882b8

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection

value

Untreated

label

Connections

value

Compression ring

label

Article compression class

value

PN 10

label

Flange compression class

value

PN 10

label

Valve shape

value

Other

label

Backflow safeguard according to EN 1717

value

EA

label

Angle of non-return valve

value

label

Medium temperature (continuous)

value

0°C - 65°C

label

Medium temperature (continuous) (imperial)

value

32°F - 149°F

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for potable water

value

Yes

label

Suitable for central heating water

value

Yes

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes
