group: K1042
The VSH K1042 is a gasmeter coupling with with a male- and female thread (nut) end. This fitting is designed for the VSH gas ball valves.
natural gas
commercial building
no approvals available
item number
size
weight
dimensions
packaging
gtin
item number
size
3/4"GMxR3/4"
weight
0.14 kg
dimensions
44x40x40 mm
packaging
bag (2 pce)
gtin
08711985028829

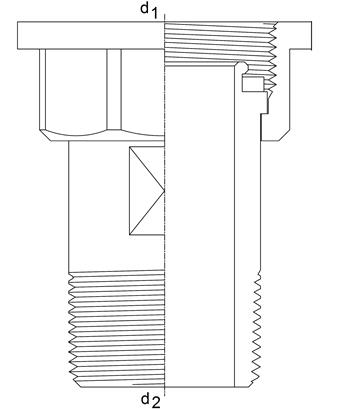

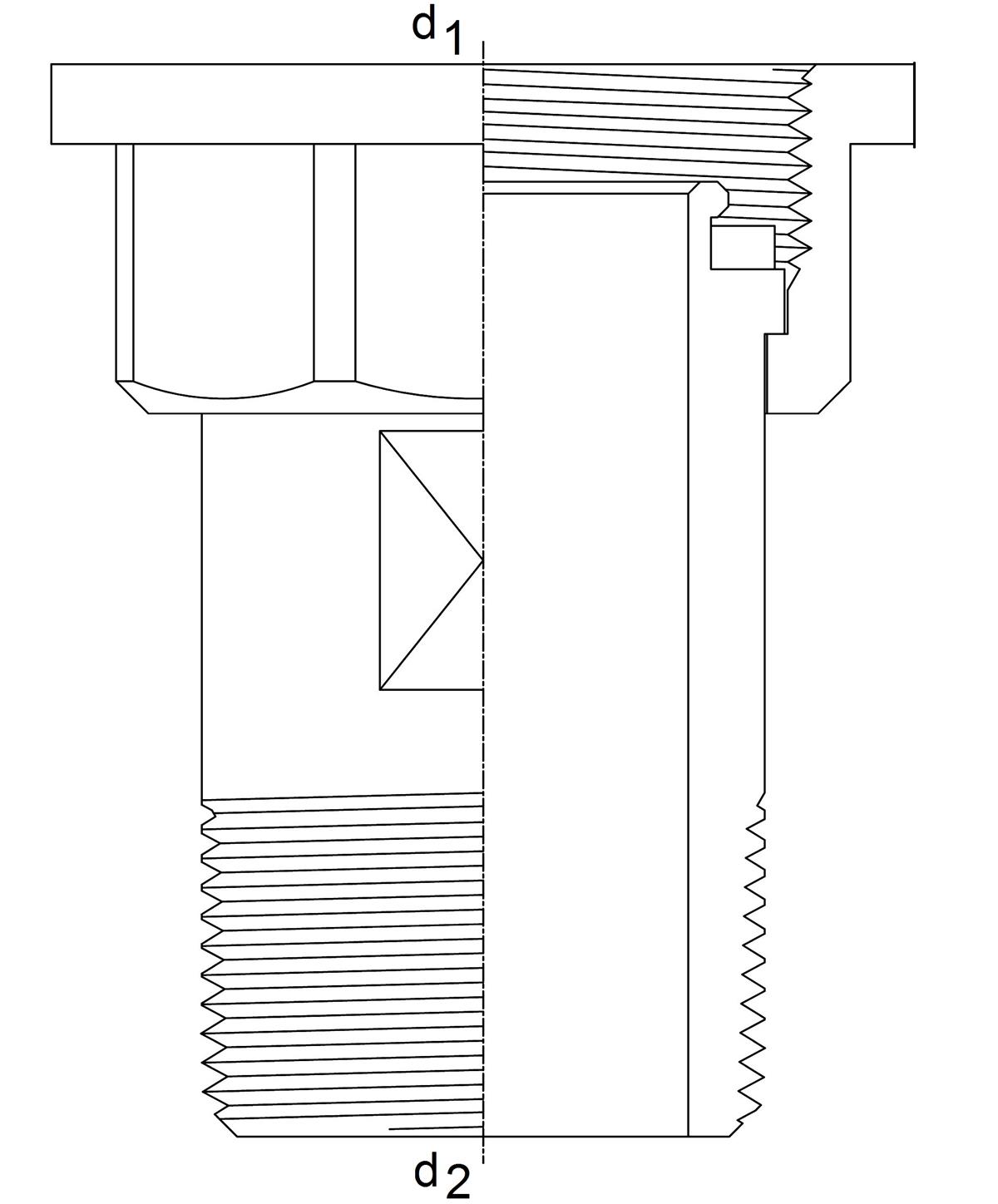

item number
size
d1
DN1
DN2
item number
1434785
size
3/4"GMxR3/4"
d1
26.9
DN1
3/4" (DN20)
DN2
3/4" (DN20)
color
brass
materials
brass
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
straight
connection type
R - male thread gas conical (BSPT)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
84814090
brand
VSH
type
K1042
SCIP
4164f411-1503-4f1c-9573-17d1ce0b4799
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material connection 2
value
Brass
label
Shape
value
Straight
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Nominal diameter connection 1
value
3/4 inch (20)
label
Outer pipe diameter connection 1
value
26.9mm
label
Outer pipe diameter connection 1 (imperial)
value
1.06"
label
Connection 1
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Nominal diameter connection 2
value
3/4 inch (20)
label
Main colour fitting
value
Brass
label
With buffer stud
value
No
label
High tensile strength
value
Yes
label
Length
value
44mm
label
Capped
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
