VSH Super gas ball valve with union nut (compression x male thread)

code

size

dimensions

weight

packaging

gtin

code

0605110

size

15xR1/2"

dimensions

92x35x52 mm

weight

0.2 kg

packaging

carton (1 pce)

gtin

08711985025835

code

0605132

size

22xR1/2"

dimensions

92x35x52 mm

weight

0.2 kg

packaging

carton (1 pce)

gtin

08711985025859

code

0605154

size

22xR3/4"

dimensions

102x43x61 mm

weight

0.4 kg

packaging

carton (1 pce)

gtin

08711985025873

code

size

d1

DN1

l1

z1

slw1

DN2

l2

slw2

slw0

M

Y

V

U

code

0605110

size

15xR1/2"

d1

15.0

DN1

DN12

l1

36

z1

14

slw1

24

DN2

1/2" (DN15)

l2

56

slw2

17

slw0

30

M

36

Y

15

V

19

U

19

code

0605132

size

22xR1/2"

d1

22.0

DN1

DN20

l1

36

z1

12

slw1

32

DN2

1/2" (DN15)

l2

56

slw2

17

slw0

30

M

36

Y

15

V

24

U

19

code

0605154

size

22xR3/4"

d1

22.0

DN1

DN20

l1

39

z1

16

slw1

32

DN2

3/4" (DN20)

l2

63

slw2

24

slw0

37

M

36

Y

15

V

24

U

19

product info

item

VSH Super gas ball valve with union nut (compression x male thread)

item number with gtin

K1023

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.4 kg

dimensions

102x43x61 mm

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight, reducer

connection type

compression, R - male thread gas conical (BSPT)

sealing

Neoprene

Bore

15 mm (No)

technical

min. medium temperature

-5 °C

max medium temperature

60 °C

general

product group

afsluiters (ball valves, gas valves)

ETIM class

EC011015 Gas valve

HS code

84814090

brand

VSH

series

Super

type

K1023

UNSPS

40141607

SCIP

4164f411-1503-4f1c-9573-17d1ce0b4799

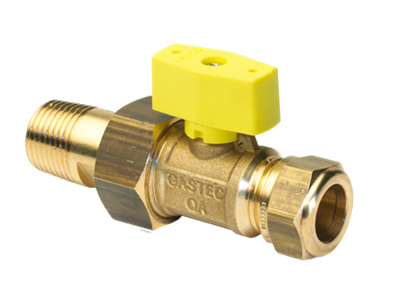

image | png

K1023

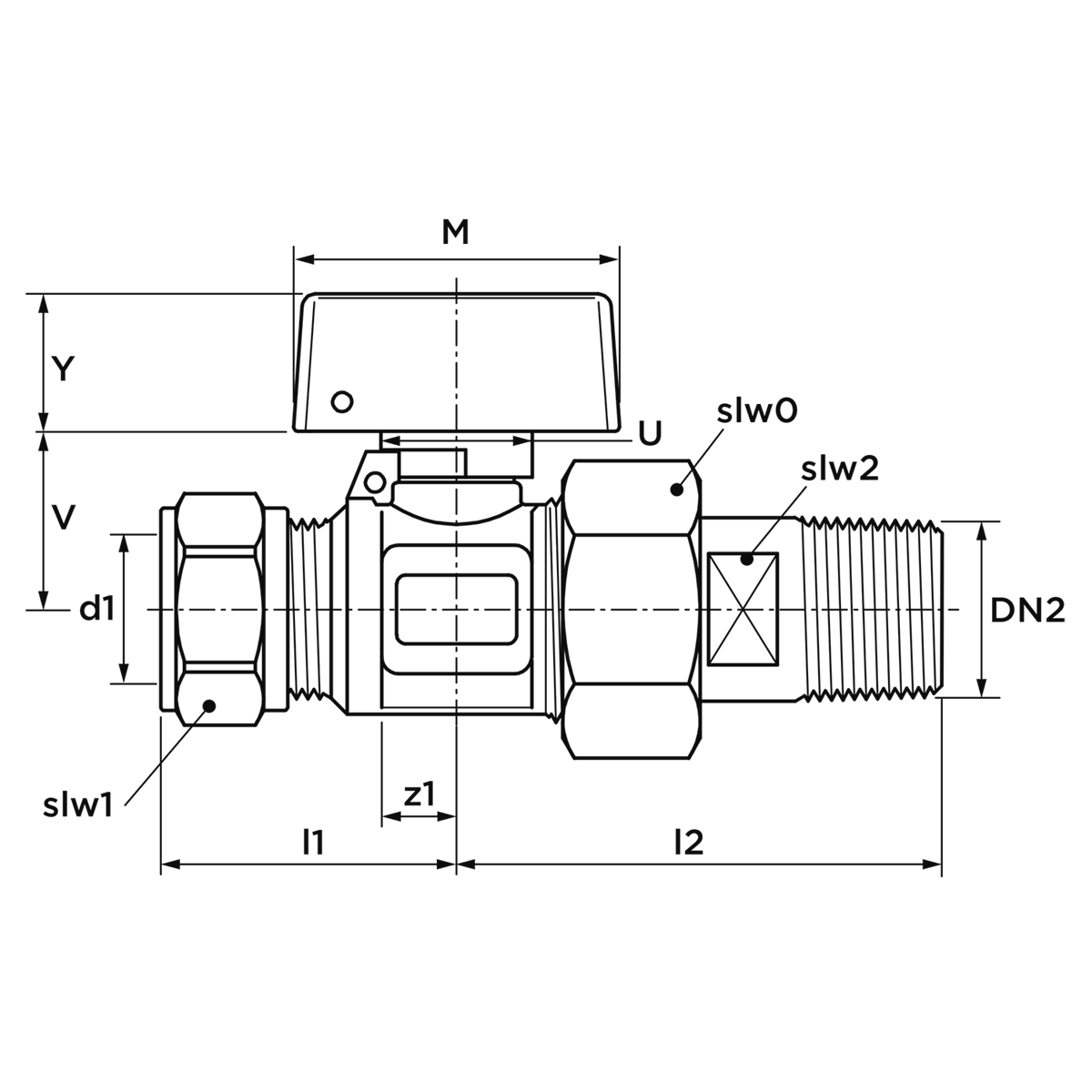

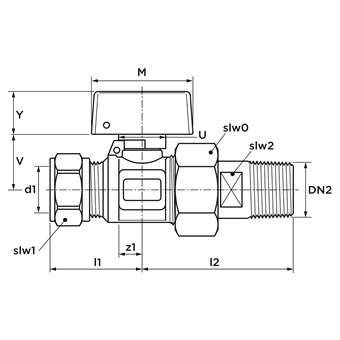

diagram | png

Diagram

Other Attachments | pdf

CE declaration VSH gas ball valves

certifications | pdf

Reach declaration

certifications | pdf

VSH gas ball valve Gastec QA

manual | pdf

VSH Gaskogel- en gasaansluitkraan instructiehandleiding

label

value

label

etim-class

value

EC011015 Gas valve

label

Housing material

value

Brass

label

Housing material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Untreated

label

Connection 1

value

Compression ring

label

With coupling connection 1

value

No

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

Yes

label

Approved according to EN 331

value

Yes

label

Operation

value

Button (expired)

label

Length of handle/diameter of hand wheel

value

36mm

label

Length of handle/diameter of hand wheel (imperial)

value

1.42"

label

DVGW quality mark for gas

value

No

label

Gastec QA mark

value

Yes
