VSH gas ball valve (female x male thread)

group: K1015

The VSH gas ball valve K1015 with female thread x male thread has Gastec Qa approval and CE-marking and can be connected with union couplings of VSH Thread, VSH End Feed and VSH Super. Also to be used with our other piping systems VSH XPress, VSH SudoPress and VSH MultiPress with Qa approval.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

segments

commercial building

commercial building

industry

industry

approvals

CE

CE

GASTEC

GASTEC

item number

size

d1

DN1

l1

z1

DN2

z2

M

item number

0604010

size

Rp1/2"xG3/4"

d1

21.3

DN1

1/2" (DN15)

l1

30

z1

15

DN2

3/4" (DN20)

z2

20

M

36

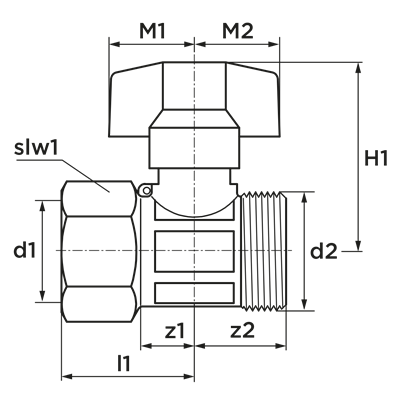

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight

connection type

Rp - female thread cylindrical (BSPT), G - male thread gas cylindrical (BSPP)

general

product group

valves (ball valves, gas valves)

ETIM class

EC011015 Gas valve

HS code

84819000

brand

VSH

type

K1015

UNSPS

40141607

SCIP

4164f411-1503-4f1c-9573-17d1ce0b4799

technical

min. medium temperature

-5 °C

max medium temperature

60 °C

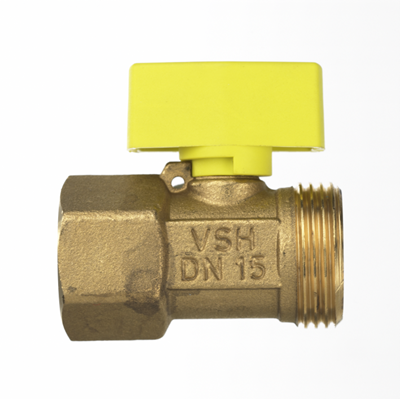

image for K1015

image | png

K1015

image for Diagram

diagram | png

Diagram

Other Attachments | pdf

CE declaration VSH gas ball valves

certifications | pdf

VSH gas ball valve Gastec QA

manual | pdf

VSH Gaskogel- en gasaansluitkraan instructiehandleiding

label

value

label

ETIM class

label

Housing material

value

Brass

label

Housing material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Untreated

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Outer pipe diameter connection 1

value

21.3mm

label

Outer pipe diameter connection 1 (imperial)

value

0.84"

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Nominal diameter connection 2

value

3/4 inch (20)

label

Connection 2

value

External thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Approved according to EN 331

value

Yes

label

Operation

value

Button (expired)

label

Length of connection 1

value

29.5mm

label

Length of connection 1 (imperial)

value

1.16"

label

Working length connection 1

value

14.5mm

label

Working length connection 1 (imperial)

value

0.57"

label

Working length connection 2

value

20mm

label

Working length connection 2 (imperial)

value

0.79"

label

Length of handle/diameter of hand wheel

value

36mm

label

Length of handle/diameter of hand wheel (imperial)

value

1.42"

label

DVGW quality mark for gas

value

No

label

Gastec QA mark

value

Yes
