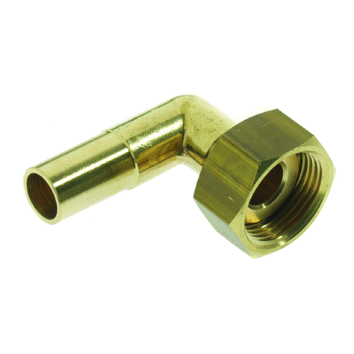

VSH Threaded elbow with swivel nut (female insert x thread)

group: I2620

The VSH Threaded I2620 is a 90° swivel nut elbow, with a female insert and thread end . VSH Threaded provides a wide assortment of fittings for every application. Ease of use and high quality are our top priorities in the VSH Threaded range.

  • manufactured from first class brass
  • same fitting applications for water and gas
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

no approvals available

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

connection type

coupling nut, tube end

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Threaded

type

I2620

UNSPS

40172801

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

3/4 inch (20)

label

Outer pipe diameter connection 1

value

26.7mm

label

Outer pipe diameter connection 1 (imperial)

value

1.05"

label

Connection 1

value

Union nut

label

Nominal diameter connection 2

value

DN 12

label

Outer pipe diameter connection 2

value

15mm

label

Outer pipe diameter connection 2 (imperial)

value

0.59"

label

Connection 2

value

Soldered end

label

Main colour fitting

value

Brass

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

67mm

label

Length of connection 1

value

30mm

label

Length of connection 1 (imperial)

value

1.18"

label

Length of connection 2

value

50mm

label

Length of connection 2 (imperial)

value

1.97"

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
