VSH XPress Copper Gas reducer (male x press)

group: G7243

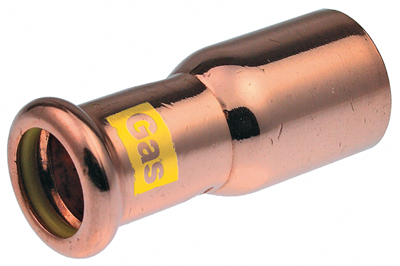

The VSH XPress G7243 is a copper reducer with a press and tube end, applicable for Gas. The yellow O-ring and clear marking on the fitting ensures a clear identification of the system. VSH XPress provides a complete piping system suitable for every conceivable application.

  • safer installation due to no naked flames or heat required
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

hydrogen (H2)

hydrogen (H2)

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

ARGB-KVBG

ARGB-KVBG

BSI Kitemark

BSI Kitemark

DVGW Gas

DVGW Gas

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

ÖVGW Gas

ÖVGW Gas

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

4804305

size

Ø18x15

d1

18.0

DN1

DN15

l1

23

z1

3

d2

15.0

DN2

DN12

l2

24

z2

4

item number

4804316

size

Ø22x15

d1

22.0

DN1

DN20

l1

28

z1

7

d2

15.0

DN2

DN12

l2

24

z2

4

item number

4804327

size

Ø22x18

d1

22.0

DN1

DN20

l1

26

z1

5

d2

18.0

DN2

DN15

l2

24

z2

4

item number

4804338

size

Ø28x15

d1

28.0

DN1

DN25

l1

37

z1

14

d2

15.0

DN2

DN12

l2

25

z2

4

item number

4804349

size

Ø28x18

d1

28.0

DN1

DN25

l1

26

z1

5

d2

18.0

DN2

DN15

l2

24

z2

4

item number

4804351

size

Ø28x22

d1

28.0

DN1

DN25

l1

30

z1

7

d2

22.0

DN2

DN20

l2

25

z2

4

item number

4804360

size

Ø35x22

d1

35.0

DN1

DN32

l1

39

z1

13

d2

22.0

DN2

DN20

l2

29

z2

9

item number

4804371

size

Ø35x28

d1

35.0

DN1

DN32

l1

35

z1

9

d2

28.0

DN2

DN25

l2

28

z2

5

item number

4804382

size

Ø42x22

d1

42.0

DN1

DN40

l1

49

z1

19

d2

22.0

DN2

DN20

l2

25

z2

4

item number

4804393

size

Ø42x28

d1

42.0

DN1

DN40

l1

44

z1

14

d2

28.0

DN2

DN25

l2

27

z2

4

item number

4804404

size

Ø42x35

d1

42.0

DN1

DN40

l1

38

z1

8

d2

35.0

DN2

DN32

l2

35

z2

8

item number

4804415

size

Ø54x35

d1

54.0

DN1

DN50

l1

53

z1

18

d2

35.0

DN2

DN32

l2

35

z2

9

item number

4804426

size

Ø54x42

d1

54.0

DN1

DN50

l1

47

z1

12

d2

42.0

DN2

DN40

l2

40

z2

9

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight, reducer

connection type

tube end, press

sealing

NBR (Nitrile)

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper Gas

type

G7243

UNSPS

40173613

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered end

label

Connection 2

value

Press sleeve

label

Main colour fitting

value

Copper

label

Material sealing

value

NBR (nitrile rubber)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

Yes

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

Yes

label

Type approval according to BBR/EKS

value

No
