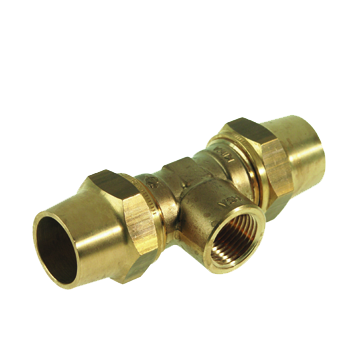

VSH Super Gas Belgium threaded T-piece (2 x compr x female thread)

group: G1223

The VSH Super G1223 is a threaded T-piece with 2 compression ends and a female thread end. This is a special Gas fitting, designed for Belgium only. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • special Gas fitting for the Belgium market
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

segments

residential

residential

commercial building

commercial building

industry

industry

approvals

ARGB-KVBG

ARGB-KVBG

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

d3

DN3

l3

z3

slw0

item number

0879813

size

15x15xRp1/2"

d1

15.0

DN1

DN12

l1

46

z1

15

slw1

24

d2

21.3

DN2

1/2" (DN15)

l2

26

z2

9

d3

15.0

DN3

DN12

l3

46

z3

15

slw0

24

item number

0879824

size

22x22xRp1/2"

d1

22.0

DN1

DN20

l1

51

z1

13

slw1

32

d2

21.3

DN2

1/2" (DN15)

l2

27

z2

12

d3

22.0

DN3

DN20

l3

51

z3

13

slw0

24

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

T-piece, reducer

connection type

compression, Rp - female thread cylindrical (BSPT), Compression

sealing

Brass

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

74122000

brand

VSH

series

Super Gas Belgium

type

G1223

SCIP

1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d

technical

min. medium temperature

-20 °C

max medium temperature

60 °C

image for G1223

image | png

G1223

image for Diagram

diagram | png

Diagram

certifications | pdf

EPD VSH Super Brass

link to sheet | pdf

MSDS_VSH_Super

certifications | pdf

VSH Super Gas 12-28mm ARGB-KVBG

installation- & maintenance document | pdf

VSH_Super_Knel_instructie_NL

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Material connection 3

value

Brass

label

Material quality connection 3

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 3

value

Untreated

label

Surface treatment connection 3

value

Untreated

label

Model

value

T-piece

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Compression ring

label

Nominal diameter connection 2

value

1/2 inch (15)

label

Outer pipe diameter connection 2

value

21.3mm

label

Outer pipe diameter connection 2 (imperial)

value

0.84"

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Connection 3

value

Compression ring

label

Material sealing

value

Brass

label

Main colour fitting

value

Brass

label

High tensile strength

value

Yes

label

Wrench width

value

24mm

label

Wrench width (imperial)

value

0.94"

label

Medium temperature (continuous)

value

-20°C - 60°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 140°F

label

With sealing rings/gaskets

value

No

label

With de-aerator

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

0879813

carbon footprint (A1-A3) cradle-to-gate

1kgCO2e

carbon footprint (A-C) embodied carbon

0.74kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.67kgCO2e

data source

EPD

item number

0879824

carbon footprint (A1-A3) cradle-to-gate

1.56kgCO2e

carbon footprint (A-C) embodied carbon

1.16kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.06kgCO2e

data source

EPD
