VSH Super Gas Belgium reduced angle adapter 90° (2 x compression)

VSH Super Gas Belgium reduced angle adapter 90° (2 x compression)

G1211

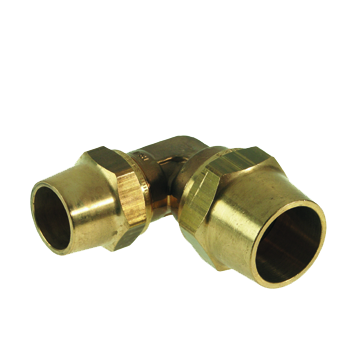

The VSH Super G1211 is a reduced 90° angle adapter with two compression ends. This is a special Gas fitting, designed for Belgium only. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.

  • special Gas fitting for the Belgium market
  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

natural gas hydrogen (H2)

solutions

building installations industry

approvals

ARGB-KVBG GASTEC
item number size weight dimensions packaging gtin
0879615 22x15 0.16 kg 65x38x38 mm bag (5 pce) 08711985148329
0879626 28x22 0.28 kg 76x46x46 mm bag (5 pce) 08711985148343

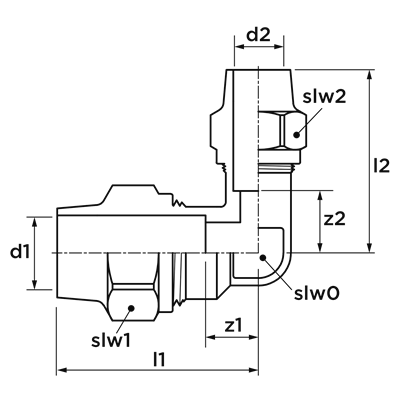

item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2 slw0
0879615 22x15 22.0 DN20 49 11 32 15.0 DN12 46 15 24 17
0879626 28x22 28.0 DN25 57 15 39 22.0 DN20 56 18 32 24
see above for the diagram related to these dimensions
color brass
materials brass (CW617N)
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Elbow, reducer (90º)
connection type compression
sealing Brass
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
country of origin Netherlands
brand VSH
series Super Gas Belgium
type G1211
SCIP 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Material quality connection 1 CuZn40Pb2 (CW617N)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Material quality connection 2 CuZn40Pb2 (CW617N)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Bend
Model 1-part
Bend angle 90°
Reducing Yes
Eccentric No
System-specific Yes
Connection 1 Compression ring
Connection 2 Compression ring
Main colour fitting Brass
Material sealing Brass
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -20°C - 60°C
Medium temperature (continuous) (imperial) -4°F - 140°F
With sealing rings/gaskets No
Capped No
With connection indicator No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark Yes
KOMO certified No
