Pegler EFM butterfly actuator electric-manual on/off

specifications

torque range 35-80Nm
operating time 8-22s
applicable voltage:
- AC/DC 24V
- AC110V / AC220V-240V
protection class IP68
connection compliant with ISO5211: F03, F05 and F07
fault signal on/off type
- motor overheating
- over torque

professional gear mechanism design
environmental safety design
IP68 rated
high strength, RoHS compliant 3d window
torque protection
F-class insulated motor for operational safety
anti-condensation heater

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

heating

cooling

compressed air

non-potable water

show all

show less

datacenters

commercial building

industry

show all

show less

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

size

on/off 35Nm

dimensions

285x114x217

weight

4.7 kg

packaging

-

gtin

-

item number

size

on/off 50Nm

dimensions

285x114x217

weight

4.7 kg

packaging

-

gtin

-

item number

size

on/off 80Nm

dimensions

335x114x217

weight

4.7 kg

packaging

-

gtin

-

item number

size

E

Y

item number

size

on/off 35Nm

E

-

Y

-

item number

size

on/off 50Nm

E

145

Y

192

item number

size

on/off 80Nm

E

145

Y

192

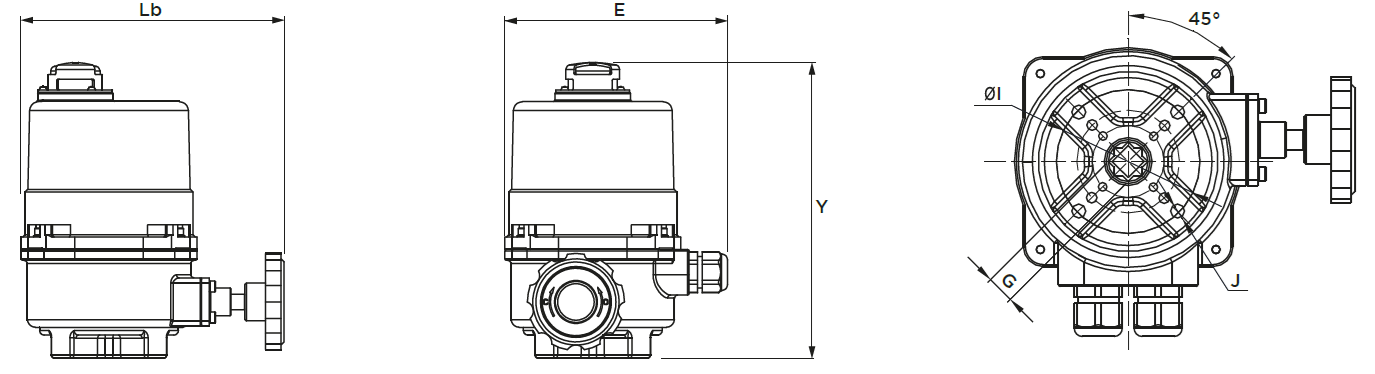

technical drawing for product

product info

item

EFM actuator electric-manual on/off 35-80Nm

item number with gtin

EFM

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

4.7 kg

dimensions

335x114x217

characteristics

color

black

general

product group

valves (electric, accessories (actuators))

ETIM class

EC011290 Electric servomotor

brand

Pegler

series

Valves

type

EFM

image for EFM

image | png

EFM

image for EFM

diagram | png

EFM

image for EFM

diagram | png

EFM

Other document | pdf

EFM Actuator Datasheet

Other document | pdf

Actuator selection matrix

label

value

label

etim-class

value

EC011290 Electric servomotor

label

Suitable for manual operation

value

No

label

Height

value

217mm

label

Height (imperial)

value

8.54"

label

Width

value

114mm

label

Width (imperial)

value

4.49"
