VSH Threaded back plate (female thread x flange)

group: D1113

The VSH Threaded D1113 is a backplate with a female thread and flange end. VSH Threaded provides a wide assortment of fittings for every application. Ease of use and high quality are our top priorities in the VSH Threaded range.

  • manufactured from first class brass
  • same fitting applications for water and gas
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

item number

0451143

size

G1/2"

d1

21.3

DN1

1/2" (DN15)

l1

29

item number

0451187

size

G1/2" Cr

d1

21.3

DN1

1/2" (DN15)

l1

29

item number

0451154

size

G3/4"

d1

26.7

DN1

3/4" (DN20)

l1

32

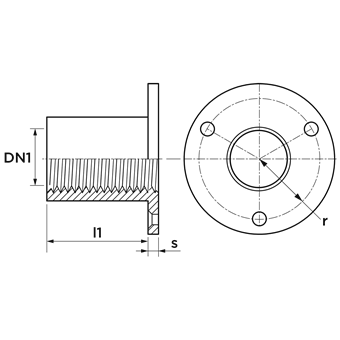

technical drawing for product

characteristics

color

brass, chrome

materials

brass (CW617N)

finishing

chromed, none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

G - female thread gas cylindrical (BSPP)

general

product group

fittings (demountable)

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

Threaded

type

D1113

SCIP

559600c8-54a3-4cba-add8-25baf7b1777f

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Shape

value

Straight

label

System specific

value

No

label

Connection

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With connection indicator

value

No

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Compliant with NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
