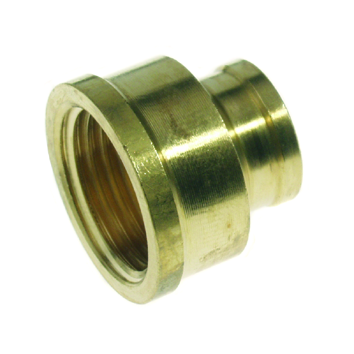

Product Image for VSH Threaded reducer (2 x female thread)

Product Image for VSH Threaded reducer (2 x female thread)

group: D1101

The VSH Threaded D1101 is a straight reducer coupling with 2 female thread ends. VSH Threaded provides a wide assortment of fittings for every application. Ease of use and high quality are our top priorities in the VSH Threaded range.

manufactured from first class brass
same fitting applications for water and gas
provided with all relevant approvals

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

potable water

heating

compressed air

show all

show less

industry

commercial building

show all

show less

no approvals available

code

size

dimensions

weight

packaging

gtin

code

size

G1/2"xG3/8" DZR

dimensions

22x26x26 mm

weight

0.03 kg

packaging

bag (10 pce)

gtin

08711985003734

code

size

G3/4"xG1/2"

dimensions

25x32x32 mm

weight

0.04 kg

packaging

bag (5 pce)

gtin

08711985003758

code

size

G1"xG3/4" DZR

dimensions

28x40x40 mm

weight

0.07 kg

packaging

bag (2 pce)

gtin

08711985003772

code

size

d1

DN1

l1

d2

DN2

l2

code

size

G1/2"xG3/8" DZR

d1

21.3

DN1

1/2" (DN15)

l1

10

d2

17.2

DN2

3/8" (DN10)

l2

12

code

size

G3/4"xG1/2"

d1

26.7

DN1

3/4" (DN20)

l1

10

d2

21.3

DN2

1/2" (DN15)

l2

15

code

size

G1"xG3/4" DZR

d1

33.7

DN1

1" (DN25)

l1

12

d2

26.7

DN2

3/4" (DN20)

l2

16

product info

item

VSH Threaded reducer (2 x female thread)

item number with gtin

D1101

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.07 kg

dimensions

28x40x40 mm

characteristics

color

brass

materials

brass (CW625N (DZR), CW602N (DZR), CB772S-G)

finishing

none

shape

straight, reducer

connection type

G - female thread gas cylindrical (BSPP)

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Threaded

type

D1101

UNSPS

40173601

SCIP

559600c8-54a3-4cba-add8-25baf7b1777f

image for D1101

image | png

D1101

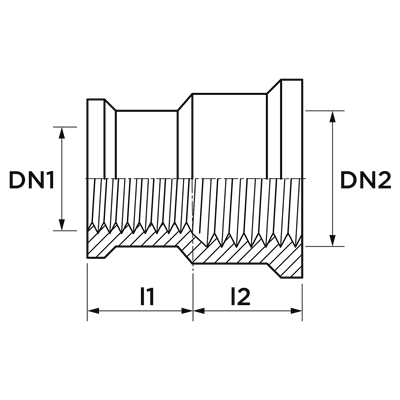

image for Diagram

diagram | png

Diagram

certifications | pdf

Reach declaration

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Brass

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Brass

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Main colour fitting

value

Brass

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

code

carbon footprint (A-C) embodied carbon

data source

code

carbon footprint (A-C) embodied carbon

0.14kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.18kgCO2e

data source

TM65

code

carbon footprint (A-C) embodied carbon

0.31kgCO2e

data source

TM65
