group: CUN7519

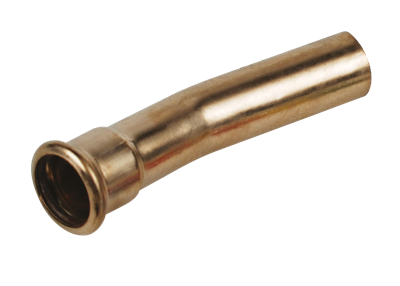

The VSH XPress CUN7519 is a CuNi 15° elbow with a press and a tube end. VSH XPress CuNi is suitable for use in salt water, making it ideal for shipbuilding applications. These fittings are provided with a brown NBR O-ring. VSH XPress provides a complete piping system suitable for every conceivable application.
cooling
industry
shipbuilding
Bureau Veritas
DNV-GL
Lloyds Register
RINA
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
60x20x20 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
08711985358827
item number
size
22
dimensions
75x30x30 mm
weight
0.09 kg
packaging
bag (2 pce)
gtin
08711985358834
item number
size
28
dimensions
85x35x35 mm
weight
0.12 kg
packaging
bag (2 pce)
gtin
08711985358841
item number
size
35
dimensions
100x40x40 mm
weight
0.21 kg
packaging
bag (1 pce)
gtin
08711985358858
item number
size
42
dimensions
120x50x50 mm
weight
0.32 kg
packaging
bag (1 pce)
gtin
08711985358865
item number
size
54
dimensions
150x65x65 mm
weight
0.53 kg
packaging
bag (1 pce)
gtin
08711985358872
item number
size
76.1
dimensions
240x90x90 mm
weight
1.64 kg
packaging
bag (1 pce)
gtin
08711985358889
item number
size
88.9
dimensions
239x105x105 mm
weight
2.16 kg
packaging
bag (1 pce)
gtin
08711985358896
item number
size
108
dimensions
254x200x132 mm
weight
3.86 kg
packaging
bag (1 pce)
gtin
08711985358902
color
copper
materials
copper-nickel (Cuni10Fe1.6Mn)
finishing
none
shape
Bend (15º)
connection type
press (M), tube end
sealing
NBR (Nitrile)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
XPress CuNi
type
CUN7519
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
95 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Material connection 1
value
CuNiFe
label
Material quality connection 1
value
CuNi10Fe1.6Mn
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
CuNiFe
label
Material quality connection 2
value
CuNi10Fe1.6Mn
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Bend angle
value
15°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Soldered end
label
Main colour fitting
value
Copper
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
NBR (nitrile rubber)
label
With buffer stud
value
No
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-20°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 203°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
