group: CUN7514

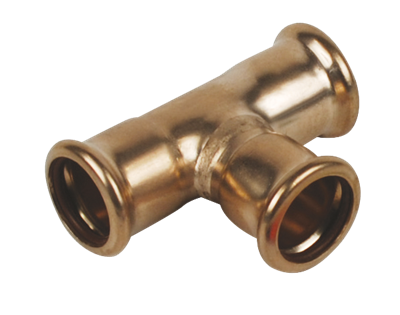

The VSH XPress CUN7514 is a CuNi T-piece with 3 press ends. VSH XPress CuNi is suitable for use in salt water, making it ideal for shipbuilding applications. These fittings are provided with a brown NBR O-ring. VSH XPress provides a complete piping system suitable for every conceivable application.
cooling
industry
shipbuilding
Bureau Veritas
DNV-GL
Lloyds Register
RINA
item number
size
dimensions
weight
packaging
gtin
item number
size
15
dimensions
65x40x20 mm
weight
0.07 kg
packaging
bag (2 pce)
gtin
08711985358957
item number
size
18
dimensions
65x45x25 mm
weight
0.09 kg
packaging
bag (2 pce)
gtin
08711985358964
item number
size
22
dimensions
73x53x30 mm
weight
0.12 kg
packaging
bag (2 pce)
gtin
08711985358971
item number
size
28
dimensions
85x65x35 mm
weight
0.16 kg
packaging
bag (2 pce)
gtin
08711985358988
item number
size
35
dimensions
100x70x43 mm
weight
0.22 kg
packaging
bag (1 pce)
gtin
08711985358995
item number
size
42
dimensions
115x85x50 mm
weight
0.31 kg
packaging
bag (1 pce)
gtin
08711985359008
item number
size
54
dimensions
140x105x65 mm
weight
0.46 kg
packaging
bag (1 pce)
gtin
08711985359015
item number
size
76.1
dimensions
208x166x940 mm
weight
1.45 kg
packaging
bag (1 pce)
gtin
08711985359022
item number
size
88.9
dimensions
323x210x105 mm
weight
1.78 kg
packaging
bag (1 pce)
gtin
08711985359039
item number
size
108
dimensions
315x230x130 mm
weight
3.31 kg
packaging
bag (1 pce)
gtin
08711985359046
color
copper
materials
copper-nickel (Cuni10Fe1.6Mn)
finishing
none
shape
T-piece (90º)
connection type
press (M), press, Press
sealing
NBR (Nitrile)
product group
fittings
ETIM class
EC003025 Fitting with 3 connections
HS code
74122000
brand
VSH
series
XPress CuNi
type
CUN7514
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
95 °C
peak medium temperature
110 °C
label
value
label
ETIM class
label
Material connection 1
value
CuNiFe
label
Material quality connection 1
value
CuNi10Fe1.6Mn
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
CuNiFe
label
Material quality connection 2
value
CuNi10Fe1.6Mn
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Material connection 3
value
CuNiFe
label
Material quality connection 3
value
CuNi10Fe1.6Mn
label
Surface protection connection 3
value
Untreated
label
Surface treatment connection 3
value
Untreated
label
Model
value
T-piece
label
Angle
value
90°
label
Reducing
value
No
label
Multi-part
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
M
label
Connection 2
value
Press sleeve
label
Connection 3
value
Press sleeve
label
Flange compression class
value
PN 16
label
Material sealing
value
NBR (nitrile rubber)
label
Main colour fitting
value
Copper
label
High tensile strength
value
Yes
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Medium temperature (continuous)
value
-20°C - 95°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 203°F
label
With sealing rings/gaskets
value
No
label
With thermal insulation
value
No
label
With buffer stud
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
