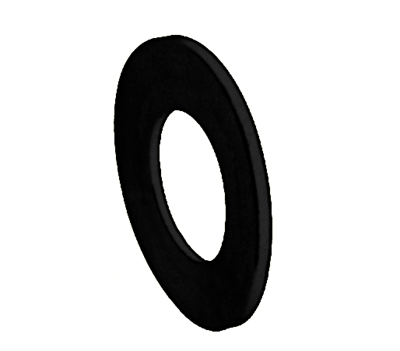

VSH PowerPress flat seal EPDM

VSH PowerPress flat seal EPDM

C9452

The VSH PowerPress® C9452 flat seal can be used with the VSH PowerPress® Union couplings. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function
  • ideal to combine with VSH XPress, VSH SudoPress and VSH Shurjoint;
  • operating temperature limited to 120C

applications

heating cooling compressed air sprinkler

solutions

building installations fire protection industry

approvals

FM QB (CSTBat)
item number size weight dimensions packaging gtin
PWR9401722 for G3/4" 0 kg 24x24x2 mm bag (20 pce) 08711985480542
PWR9401471 for G1" 0 kg 30x30x2 mm bag (20 pce) 08711985474404
PWR9401480 for G1 1/4" 0 kg 39x39x2 mm bag (20 pce) 08711985474435
PWR9401491 for G1 1/2" 0 kg 45x45x2 mm bag (20 pce) 08711985474466
PWR9401733 for G2" 0 kg 57x57x2 mm bag (20 pce) 08711985480573
PWR9401502 for G2 1/2" 0.01 kg 71x71x2 mm bag (20 pce) 08711985474497
item number size d1 DN1 d2 d3 d4 d5 d6 d7 d8 s1
PWR9401722 for G3/4" 15.5 (DN15) DN15 2.0
PWR9401471 for G1" 21.6 (DN20) DN20 2.0
PWR9401480 for G1 1/4" 27 (DN25) DN25 2.0
PWR9401491 for G1 1/2" 34.9 (DN32) DN32 2.0
PWR9401733 for G2" 43.9 (DN40) DN40 2.0
PWR9401502 for G2 1/2" 54 (DN50) DN50 2.0
see above for the diagram related to these dimensions
color black
materials rubber (EPDM)
finishing none
manufacturer 8711985000009
shape round
sealing EPDM
product group fittings (accessories (fittings))
ETIM class EC001181 Sealing ring, flat
HS code 40169300
country of origin Netherlands
brand VSH
series PowerPress
type C9452
UNSPS 31401501
label value
ETIM class EC001181 Sealing ring, flat
Material Rubber
Material quality Ethylene-propylene diene monomer rubber (EPDM)
Shape Flat
Ring model Massive
Thickness 2mm
Thickness (imperial) 0.08"
With washer No

accessories

item number description
PWR9401744 VSH PowerPress insertion depth marker 1/2"-2"
