C9448
VSH PowerPress® C9448 is a connector which connects VSH PowerPress® with grooved couplings such as VSH Shurjoint. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
PWR9401095 | 1"x33.7 | 0.19 kg | 69x46x46 mm | bag (5 pce) | 08711985470932 |
PWR9401106 | 1 1/4"x42.4 | 0.34 kg | 82x56x56 mm | bag (1 pce) | 08711985470949 |
PWR9401117 | 1 1/2"x48.3 | 0.38 kg | 82x62x62 mm | bag (1 pce) | 08711985470956 |
PWR9401128 | 2"x60.3 | 0.5 kg | 88x74x74 mm | bag (1 pce) | 08711985470963 |

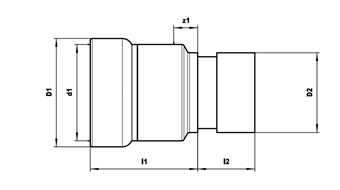

item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 |
---|---|---|---|---|---|---|---|---|
PWR9401095 | 1"x33.7 | 33.7 | DN25 | 45 | 9 | 33.7 | DN25 | 24 |
PWR9401106 | 1 1/4"x42.4 | 42.4 | DN32 | 58 | 10 | 42.4 | DN32 | 24 |
PWR9401117 | 1 1/2"x48.3 | 48.3 | DN40 | 58 | 9 | 48.3 | DN40 | 24 |
PWR9401128 | 2"x60.3 | 60.3 | DN50 | 63 | 10 | 60.3 | DN50 | 24 |
color | grey |
---|---|
materials | steel (St 35 (1.0308)) |
finishing | zinc-nickel plated |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | straight |
connection type | press (DW), groove (fitting) |
sealing | EPDM |
product group | fittings |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
HS code | 73079980 |
brand | VSH |
series | PowerPress |
type | C9448 |
UNSPS | 40172502 |
SCIP | 2dc8f2fc-98c9-4447-b557-184ada83b520 |
210628_MSDS_VSH_PowerPress_EN link to sheet |
download | |
C9448 image |
png | download |
VSH PowerPress CSTB certifications |
download | |
VSH PowerPress FM certifications |
download | |
Diagram diagram |
png | download |
VSH PowerPress instructions installation- & maintenance document |
download | |
VSH PowerPress 3D CAD Step CAD |
zip | download |
VSH PowerPress 3D CAD IGES CAD |
zip | download |
VSH PowerPress 2D CAD dxf CAD |
zip | download |
VSH Shurjoint instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Steel |
Material quality connection 1 | St 35 (1.0308) |
Surface protection connection 1 | Zinc/nickel |
Material connection 2 | Steel |
Material quality connection 2 | St 35 (1.0308) |
Surface protection connection 2 | Zinc/nickel |
Shape | Straight |
Model | 1-part |
Reducing | No |
Eccentric | No |
System specific | Yes |
Connection 1 | Press sleeve |
Contour code connection 1 | DW |
Connection 2 | Groove |
Main colour fitting | Grey |
Flange compression class | PN 16 |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
With buffer stud | Yes |
High tensile strength | Yes |
Length of connection 2 | 23.9mm |
Length of connection 2 (imperial) | 0.94" |
Medium temperature (continuous) | -40°C - 135°C |
Medium temperature (continuous) (imperial) | -40°F - 275°F |
Max. operating pressure at 20 °C | 16bar |
Max. operating pressure at 20 °C (imperial) | 232.06psi |
With thermal insulation | No |
With sealing rings/gaskets | No |
Capped | Yes |
With connection indicator | Yes |
With drain valve | No |
With de-aerator | No |
FM quality mark | Yes |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
Certified according to NF 545 | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
