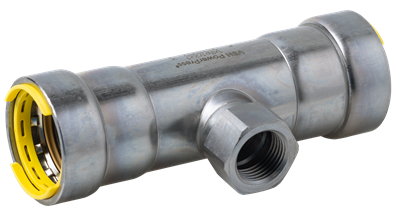

VSH PowerPress Gas threaded T-piece (press x female thread x press)

group: C9418G

VSH PowerPress Gas® C9418G is a T-piece with female threaded outlet designed for thick wall steel pipe. By using VSH PowerPress Gas® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

compressed air

compressed air

hydrogen (H2)

hydrogen (H2)

segments

commercial building

commercial building

industry

industry

approvals

BSI Kitemark

BSI Kitemark

DVGW Gas

DVGW Gas

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw2

d3

DN3

l3

z3

item number

123459178

size

1/2"x1/2"xRp1/2"

d1

21.3

DN1

DN15

l1

52

z1

24

d2

21.3

DN2

1/2" (DN15)

l2

36

z2

27

slw2

27

d3

21.3

DN3

DN15

l3

52

z3

24

item number

123459179

size

3/4"x3/4"xRp1/2"

d1

26.9

DN1

DN20

l1

57

z1

26

d2

21.3

DN2

1/2" (DN15)

l2

38

z2

30

slw2

27

d3

26.9

DN3

DN20

l3

57

z3

26

item number

123459180

size

1"x1"xRp1/2"

d1

33.7

DN1

DN25

l1

66

z1

30

d2

21.3

DN2

1/2" (DN15)

l2

46

z2

38

slw2

27

d3

33.7

DN3

DN25

l3

66

z3

30

item number

123459181

size

1"x1"xRp3/4"

d1

33.7

DN1

DN25

l1

66

z1

30

d2

26.9

DN2

3/4" (DN20)

l2

47

z2

38

slw2

32

d3

33.7

DN3

DN25

l3

66

z3

30

item number

123459182

size

1 1/4"x1 1/4"xRp1/2"

d1

42.4

DN1

DN32

l1

82

z1

34

d2

21.3

DN2

1/2" (DN15)

l2

50

z2

42

slw2

27

d3

42.4

DN3

DN32

l3

82

z3

34

item number

123459183

size

1 1/4"x1 1/4"xRp3/4"

d1

42.4

DN1

DN32

l1

82

z1

34

d2

26.9

DN2

3/4" (DN20)

l2

48

z2

38

slw2

32

d3

42.4

DN3

DN32

l3

82

z3

34

item number

123459184

size

1 1/4"x1 1/4"xRp1"

d1

42.4

DN1

DN32

l1

82

z1

34

d2

33.7

DN2

1" (DN25)

l2

50

z2

40

slw2

41

d3

42.4

DN3

DN32

l3

82

z3

34

item number

123459185

size

1 1/2"x1 1/2"xRp1/2"

d1

48.3

DN1

DN40

l1

89

z1

40

d2

21.3

DN2

1/2" (DN15)

l2

52

z2

44

slw2

27

d3

48.3

DN3

DN40

l3

89

z3

40

item number

123459186

size

1 1/2"x1 1/2"xRp3/4"

d1

48.3

DN1

DN40

l1

89

z1

40

d2

26.9

DN2

3/4" (DN20)

l2

50

z2

34

slw2

32

d3

48.3

DN3

DN40

l3

89

z3

40

item number

123459187

size

1 1/2"x1 1/2"xRp1"

d1

48.3

DN1

DN40

l1

89

z1

40

d2

33.7

DN2

1" (DN25)

l2

52

z2

33

slw2

41

d3

48.3

DN3

DN40

l3

89

z3

40

item number

123459188

size

2"x2"xRp1/2"

d1

60.3

DN1

DN50

l1

96

z1

43

d2

21.3

DN2

1/2" (DN15)

l2

60

z2

51

slw2

27

d3

60.3

DN3

DN50

l3

96

z3

43

item number

123459189

size

2"x2"xRp3/4"

d1

60.3

DN1

DN50

l1

96

z1

43

d2

26.9

DN2

3/4" (DN20)

l2

57

z2

48

slw2

32

d3

60.3

DN3

DN50

l3

96

z3

43

item number

123459190

size

2"x2"xRp1"

d1

60.3

DN1

DN50

l1

96

z1

43

d2

33.7

DN2

1" (DN25)

l2

60

z2

49

slw2

41

d3

60.3

DN3

DN50

l3

96

z3

43

item number

size

z3

1/2"x1/2"xRp1/2"

24

3/4"x3/4"xRp1/2"

26

1"x1"xRp1/2"

30

1"x1"xRp3/4"

30

1 1/4"x1 1/4"xRp1/2"

34

1 1/4"x1 1/4"xRp3/4"

34

1 1/4"x1 1/4"xRp1"

34

1 1/2"x1 1/2"xRp1/2"

40

1 1/2"x1 1/2"xRp3/4"

40

1 1/2"x1 1/2"xRp1"

40

2"x2"xRp1/2"

43

2"x2"xRp3/4"

43

2"x2"xRp1"

43

technical drawing for product

characteristics

color

grey

materials

steel (St 35 (1.0308))

finishing

zinc-nickel plated

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

T-piece, reducer (90º)

connection type

press (DW), Rp - female thread cylindrical (BSPT), Press (DW)

sealing

HNBR

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

73079980

brand

VSH

series

PowerPress Gas

type

C9418G

UNSPS

40174602

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

St 35 (1.0308)

label

Surface protection connection 1

value

Zinc/nickel

label

Material connection 2

value

Steel

label

Material quality connection 2

value

St 35 (1.0308)

label

Surface protection connection 2

value

Zinc/nickel

label

Material connection 3

value

Steel

label

Material quality connection 3

value

St 35 (1.0308)

label

Surface protection connection 3

value

Zinc/nickel

label

Model

value

T-piece

label

Angle

value

90°

label

Swept entry type (with inner radius)

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

DW

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Connection 3

value

Press sleeve

label

Contour code connection 3

value

DW

label

Material sealing

value

Hydrogenated acrylonitrile butadiene rubber (HNBR)

label

Main colour fitting

value

Grey

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 70°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 158°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

Yes

label

Capped

value

Yes

label

With connection indicator

value

Yes

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

Yes

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

Yes

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

Yes
