group: C9413G
VSH PowerPress Gas® C9413G is a 45° bend designed for thick wall steel pipe. By using VSH PowerPress Gas® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".
natural gas
compressed air
hydrogen (H2)
commercial building
industry
BSI Kitemark
DVGW Gas
GASTEC
Gastec-H2-ready
item number
size
dimensions
weight
packaging
gtin
item number
size
1/2"
dimensions
56x56x32 mm
weight
0.16 kg
packaging
bag (10 pce)
gtin
08711985499018
item number
size
3/4"
dimensions
64x64x38 mm
weight
0.2 kg
packaging
bag (10 pce)
gtin
08711985499025
item number
size
1"
dimensions
76x76x46 mm
weight
0.33 kg
packaging
bag (5 pce)
gtin
08711985499032
item number
size
1 1/4"
dimensions
97x97x56 mm
weight
0.47 kg
packaging
bag (1 pce)
gtin
08711985499049
item number
size
1 1/2"
dimensions
105x105x62 mm
weight
0.61 kg
packaging
bag (1 pce)
gtin
08711985499056
item number
size
2"
dimensions
122x122x74 mm
weight
0.93 kg
packaging
bag (1 pce)
gtin
08711985499063
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
radius
angle
item number
123459151size
1/2"
d1
21.3
DN1
DN15
l1
41
z1
13
d2
21.3
DN2
DN15
l2
41
z2
13
radius
25
angle
45
item number
123459152size
3/4"
d1
26.9
DN1
DN20
l1
46
z1
15
d2
26.9
DN2
DN20
l2
46
z2
15
radius
30
angle
45
item number
123459153size
1"
d1
33.7
DN1
DN25
l1
54
z1
18
d2
33.7
DN2
DN25
l2
54
z2
18
radius
38
angle
45
item number
123459154size
1 1/4"
d1
42.4
DN1
DN32
l1
71
z1
23
d2
42.4
DN2
DN32
l2
71
z2
23
radius
45
angle
45
item number
123459155size
1 1/2"
d1
48.3
DN1
DN40
l1
74
z1
25
d2
48.3
DN2
DN40
l2
74
z2
25
radius
50
angle
45
item number
123459156size
2"
d1
60.3
DN1
DN50
l1
84
z1
31
d2
60.3
DN2
DN50
l2
84
z2
31
radius
65
angle
45
color
grey
materials
steel (St 35 (1.0308))
finishing
zinc-nickel plated
shape
Bend (45º)
connection type
press (DW)
sealing
HNBR
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
73079980
brand
VSH
series
PowerPress Gas
type
C9413G
UNSPS
40172802
min. medium temperature
-20 °C
max medium temperature
70 °C

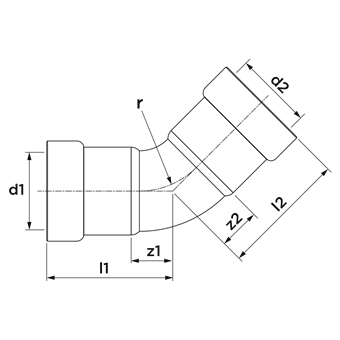

diagram | png
Diagram
image | png
C9413G
installation- & maintenance document | pdf
VSH PowerPress Gas installation instructions
Environmental Product Declaration | pdf
EPD VSH PowerPress Gas
certifications | pdf
VSH PowerPress DVGW Gas
certifications | pdf
VSH PowerPress Gas BSI
certifications | pdf
VSH PowerPress Gas Gastec
certifications | pdf
VSH PowerPress Gas Gastec H2
label
value
label
ETIM class
label
Material connection 1
value
Steel
label
Material quality connection 1
value
St 35 (1.0308)
label
Surface protection connection 1
value
Zinc/nickel
label
Material connection 2
value
Steel
label
Material quality connection 2
value
St 35 (1.0308)
label
Surface protection connection 2
value
Zinc/nickel
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
45°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
DW
label
Connection 2
value
Press sleeve
label
Contour code connection 2
value
DW
label
Main colour fitting
value
Grey
label
Material sealing
value
Hydrogenated acrylonitrile butadiene rubber (HNBR)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-20°C - 70°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 158°F
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
Yes
label
With connection indicator
value
Yes
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
Yes
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
Yes
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
Yes
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
123459151carbon footprint (A1-A3) cradle-to-gate
0.42kgCO2e
carbon footprint (A-C) embodied carbon
0.47kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.29kgCO2e
data source
EPD
item number
123459152carbon footprint (A1-A3) cradle-to-gate
0.58kgCO2e
carbon footprint (A-C) embodied carbon
0.64kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.39kgCO2e
data source
EPD
item number
123459153carbon footprint (A1-A3) cradle-to-gate
0.91kgCO2e
carbon footprint (A-C) embodied carbon
1.01kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.62kgCO2e
data source
EPD
item number
123459154carbon footprint (A1-A3) cradle-to-gate
1.43kgCO2e
carbon footprint (A-C) embodied carbon
1.57kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.97kgCO2e
data source
EPD
item number
123459155carbon footprint (A1-A3) cradle-to-gate
1.89kgCO2e
carbon footprint (A-C) embodied carbon
2.09kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.28kgCO2e
data source
EPD
item number
123459156carbon footprint (A1-A3) cradle-to-gate
2.66kgCO2e
carbon footprint (A-C) embodied carbon
2.94kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.8kgCO2e
data source
EPD
