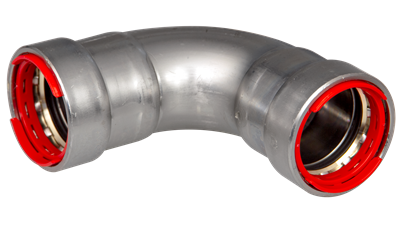

VSH PowerPress bend 90° (2 x press)

group: C9408

VSH PowerPress® C9408 is a 90° bend designed for thick wall steel pipe. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function
  • ideal to combine with VSH XPress, VSH SudoPress and VSH Shurjoint;
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

QB (CSTBat)

QB (CSTBat)

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

radius

angle

item number

PWR9400006

size

1/2"

d1

21.3

DN1

DN15

l1

55

z1

27

d2

21.3

DN2

DN15

l2

55

z2

27

radius

25

angle

90

item number

PWR9400017

size

3/4"

d1

26.9

DN1

DN20

l1

63

z1

32

d2

26.9

DN2

DN20

l2

63

z2

32

radius

30

angle

90

item number

PWR9400028

size

1"

d1

33.7

DN1

DN25

l1

76

z1

40

d2

33.7

DN2

DN25

l2

76

z2

40

radius

38

angle

90

item number

PWR9400039

size

1 1/4"

d1

42.4

DN1

DN32

l1

97

z1

49

d2

42.4

DN2

DN32

l2

97

z2

49

radius

45

angle

90

item number

PWR9400041

size

1 1/2"

d1

48.3

DN1

DN40

l1

103

z1

54

d2

48.3

DN2

DN40

l2

103

z2

54

radius

50

angle

90

item number

PWR9400050

size

2"

d1

60.3

DN1

DN50

l1

122

z1

69

d2

60.3

DN2

DN50

l2

122

z2

69

radius

65

angle

90

technical drawing for product

characteristics

color

grey

materials

steel (St 35 (1.0308))

finishing

zinc-nickel plated

shape

Bend (90º)

connection type

press (DW)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

73079980

brand

VSH

series

PowerPress

type

C9408

UNSPS

40172802

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

St 35 (1.0308)

label

Surface protection connection 1

value

Zinc/nickel

label

Material connection 2

value

Steel

label

Material quality connection 2

value

St 35 (1.0308)

label

Surface protection connection 2

value

Zinc/nickel

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

DW

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

DW

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-40°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-40°F - 275°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

Yes

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
