group: C9401

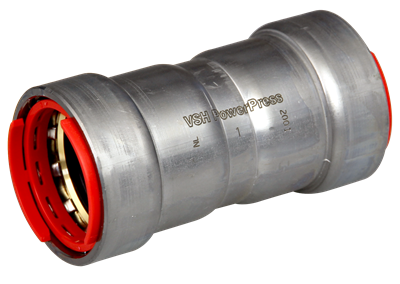

VSH PowerPress® C9401 is a straight coupling designed for thick wall steel pipe. By using VSH PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".
heating
cooling
compressed air
sprinkler
building installations
fire protection
industry
FM
QB (CSTBat)
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| PWR9400809 | 1/2" | 0.13 kg | 68x32x32 mm | bag (10 pce) | 08711985470642 |
| PWR9400811 | 3/4" | 0.17 kg | 74x38x38 mm | bag (10 pce) | 08711985470659 |
| PWR9400820 | 1" | 0.26 kg | 84x46x46 mm | bag (5 pce) | 08711985470666 |
| PWR9400831 | 1 1/4" | 0.42 kg | 112x56x56 mm | bag (1 pce) | 08711985470673 |
| PWR9400842 | 1 1/2" | 0.53 kg | 115x62x62 mm | bag (1 pce) | 08711985470680 |
| PWR9400853 | 2" | 0.71 kg | 122x74x74 mm | bag (1 pce) | 08711985470697 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| PWR9400809 | 1/2" | 21.3 | DN15 | 34 | 6 | 21.3 | DN15 | 34 | 6 |
| PWR9400811 | 3/4" | 26.9 | DN20 | 37 | 6 | 26.9 | DN20 | 37 | 6 |
| PWR9400820 | 1" | 33.7 | DN25 | 42 | 6 | 33.7 | DN25 | 42 | 6 |
| PWR9400831 | 1 1/4" | 42.4 | DN32 | 56 | 8 | 42.4 | DN32 | 56 | 8 |
| PWR9400842 | 1 1/2" | 48.3 | DN40 | 57 | 8 | 48.3 | DN40 | 57 | 8 |
| PWR9400853 | 2" | 60.3 | DN50 | 61 | 8 | 60.3 | DN50 | 61 | 8 |
| color | grey |
|---|---|
| materials | steel (St 35 (1.0308)) |
| finishing | zinc-nickel plated |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | straight |
| connection type | press (DW) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73079980 |
| brand | VSH |
| series | PowerPress |
| type | C9401 |
| UNSPS | 40172602 |
VSH PowerPress CSTB certifications |
download | |
VSH PowerPress FM certifications |
download | |
 Diagram diagram |
png | download |
 C9401 image |
png | download |
VSH PowerPress instructions installation- & maintenance document |
download | |
VSH PowerPress 3D CAD Step CAD |
zip | download |
VSH PowerPress 3D CAD IGES CAD |
zip | download |
VSH PowerPress 2D CAD dxf CAD |
zip | download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Steel |
| Material quality connection 1 | St 35 (1.0308) |
| Surface protection connection 1 | Zinc/nickel |
| Material connection 2 | Steel |
| Material quality connection 2 | St 35 (1.0308) |
| Surface protection connection 2 | Zinc/nickel |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Contour code connection 1 | DW |
| Connection 2 | Press sleeve |
| Contour code connection 2 | DW |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -40°C - 135°C |
| Medium temperature (continuous) (imperial) | -40°F - 275°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | Yes |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
| Type approval according to BBR/EKS | No |
| item number | description | |
|---|---|---|
 |
PWR9401744 | VSH PowerPress insertion depth marker 1/2"-2" |
