VSH XPress Carbon slip coupling (press x female thread)

VSH XPress Carbon slip coupling (press x female thread)

C1443

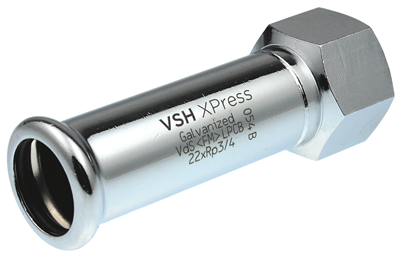

The VSH XPress C1443 is a carbon steel slip coupling with a press and male thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating cooling compressed air solar energy sprinkler vacuum

solutions

building installations shipbuilding fire protection

approvals

ATG Bureau Veritas CNBOP DNV-GL Lloyds Register LPCB QB (CSTBat) RINA RISE SBSC SPF UL ULc VdS
item number size weight dimensions packaging gtin
6241312 22xRp1/2" 0.1 kg 114x32x32 mm bag (10 pce) 08711985245301
6241323 22xRp3/4" 0.14 kg 124x32x32 mm bag (10 pce) 08711985245325
6241268 28xRp1/2" 0.15 kg 118x37x37 mm bag (10 pce) 08711985245264
6241279 28xRp3/4" 0.13 kg 116x37x37 mm bag (10 pce) 08711985245288
item number size d1 DN1 l1 z1 es1 d2 DN2 l2 z2 slw2
6241312 22xRp1/2" 22.0 DN20 92 0 21 21.3 1/2" (DN15) 22 15 28
6241323 22xRp3/4" 22.0 DN20 97 0 21 26.9 3/4" (DN20) 27 17 32
6241268 28xRp1/2" 28.0 DN25 94 0 23 21.3 1/2" (DN15) 24 15 32
6241279 28xRp3/4" 28.0 DN25 93 0 23 26.9 3/4" (DN20) 23 17 32
see above for the diagram related to these dimensions
color silver
materials steel (St 34.2 (1.0034))
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight, reducer
connection type press (M), Rp - female thread cylindrical (BSPT)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73079980
country of origin Netherlands
brand VSH
series XPress Carbon
type C1443
SCIP 233056dc-cd46-44db-9410-a4845109c0f6
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Material quality connection 1 St 34.2 (1.0034)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Steel
Material quality connection 2 St 34.2 (1.0034)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Straight
Model 1-part
Reducing Yes
Eccentric No
System-specific Yes
Wall thickness, connection 1 1.5mm
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Main colour fitting Grey
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
High tensile strength Yes
Working length connection 1 0mm
Working length connection 1 (imperial) 0"
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark Yes
ULC quality mark Yes
UL quality mark Yes
DIN-CERTCO certificate No
VdS quality mark Yes
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
