C1428

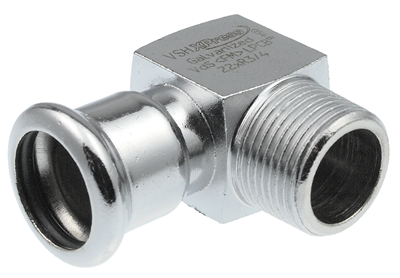

The VSH XPress C1428 is a carbon steel 90º angle adapter with a press and male thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6202064 | 12xR3/8" | 0.07 kg | 46x18x34 mm | bag (10 pce) | 08711985095470 |
| 6202075 | 15xR3/8" | 0.06 kg | 49x18x34 mm | bag (10 pce) | 08711985095494 |
| 6202086 | 15xR1/2" | 0.1 kg | 52x22x42 mm | bag (10 pce) | 08711985095517 |
| 6202097 | 18xR1/2" | 0.1 kg | 53x22x42 mm | bag (10 pce) | 08711985095531 |
| 6202108 | 22xR3/4" | 0.17 kg | 59x28x50 mm | bag (10 pce) | 08711985095555 |

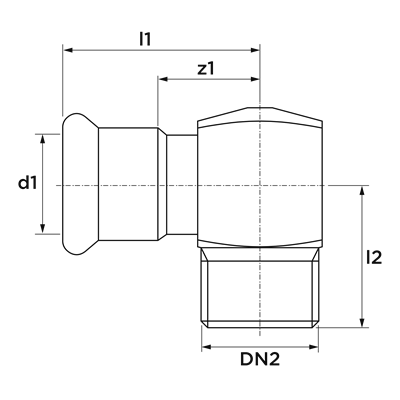

| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 |
|---|---|---|---|---|---|---|---|---|
| 6202064 | 12xR3/8" | 12.0 | DN10 | 37 | 20 | 17.2 | 3/8" (DN10) | 22 |
| 6202075 | 15xR3/8" | 15.0 | DN12 | 40 | 20 | 17.2 | 3/8" (DN10) | 22 |
| 6202086 | 15xR1/2" | 15.0 | DN12 | 41 | 21 | 21.3 | 1/2" (DN15) | 28 |
| 6202097 | 18xR1/2" | 18.0 | DN15 | 42 | 22 | 21.3 | 1/2" (DN15) | 28 |
| 6202108 | 22xR3/4" | 22.0 | DN20 | 45 | 24 | 26.9 | 3/4" (DN20) | 32 |
| color | silver |
|---|---|
| materials | steel (St 34.2 (1.0034)) |
| finishing | galvanised |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Elbow, reducer (90º) |
| connection type | press (M), R - male thread gas conical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73079980 |
| brand | VSH |
| series | XPress Carbon |
| type | C1428 |
| UNSPS | 40172812 |
| SCIP | 233056dc-cd46-44db-9410-a4845109c0f6 |
ATG3056_XPress_Carbon_F certifications |
download | |
 C1428 image |
png | download |
EPD-VSH-XPress-Carbon Environmental Product Declaration |
download | |
SDS VSH XPress Carbon link to sheet |
download | |
VSH XPress Carbon LPCB certifications |
download | |
VSH XPress Carbon Lloyds Register certifications |
download | |
VSH XPress Carbon SBSC certifications |
download | |
VSH XPress QB certifications |
download | |
VSH _XPress_VdS certifications |
download | |
VSH_XPress_Carbon-SPF certifications |
download | |
VSH_XPress_Galvanized_RINA certifications |
download | |
VSH_XPress_carbon_RISE certifications |
download | |
ATG3056_XPress_Carbon certifications |
download | |
 Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Steel |
| Material quality connection 1 | St 34.2 (1.0034) |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Steel |
| Material quality connection 2 | St 34.2 (1.0034) |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 90° |
| Eccentric | No |
| System specific | Yes |
| Wall thickness, connection 1 | 1.5mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Connection 2 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Main colour fitting | Grey |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -35°C - 135°C |
| Medium temperature (continuous) (imperial) | -31°F - 275°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
| item number | description | |
|---|---|---|
 |
6222205 | VSH XPress Carbon+Stainless O-ring EPDM LBP 12 |
 |
6212646 | VSH XPress C+S insert depth marker 12-108 |
 |
6211898 | Deburrer for carbon and stainless steel tube 12-54 |
|
6222216 | VSH XPress Carbon+Stainless O-ring EPDM LBP 15 |
 |
6119401 | VSH XPress Carbon+Stainless O-ring FPM LBP 15 |
 |
6340708 | VSH SudoXPress Carbon galvanized tube+PP 15x1.2 small bundle |
|
6204682 | VSH SudoXPress Carbon galvanized tube+PP coating 15x1.2 |
 |
6209931 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m) small bundle |
|
6206277 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=3m) |
|
6205155 | VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m) |
|
6119410 | VSH XPress Carbon+Stainless O-ring FPM LBP 18 |
|
6222227 | VSH XPress Carbon+Stainless O-ring EPDM LBP 18 |
|
6119421 | VSH XPress Carbon+Stainless O-ring FPM LBP 22 |
|
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 |
 |
6340004 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 small bundle |
|
6241114 | VSH XPress Carbon Sendzimir galvanized tube 22x1.5 |
|
6340721 | VSH SudoXPress Carbon galvanized tube+PP 22x1.5 small bundle |
|
6204704 | VSH SudoXPress Carbon galvanized tube+PP coating 22x1.5 |
|
6205177 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) |
|
6206299 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=3m) |
|
6209951 | VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) small bundle |
|
6205144 | VSH SudoXPress Carbon galvanized tube 12x1.2 (l=6m) |
|
6209940 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m) small bundle |
|
6209929 | VSH SudoXPress Carbon galvanized tube 12x1.2 (l=6m) small bundle |
|
6206288 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=3m) |
|
6206266 | VSH SudoXPress Carbon galvanized tube 12x1.2 (l=3m) |
|
6205166 | VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m) |
|
6204693 | VSH SudoXPress Carbon galvanized tube+PP coating 18x1.2 |
|
6340719 | VSH SudoXPress Carbon galvanized tube+PP 18x1.2 small bundle |
| item number | description | ||
|---|---|---|---|
|
6222205 | VSH XPress Carbon+Stainless O-ring EPDM LBP 12 | 1 |
|
6222216 | VSH XPress Carbon+Stainless O-ring EPDM LBP 15 | 1 |
|
6222227 | VSH XPress Carbon+Stainless O-ring EPDM LBP 18 | 1 |
|
6222238 | VSH XPress Carbon+Stainless O-ring EPDM LBP 22 | 1 |
